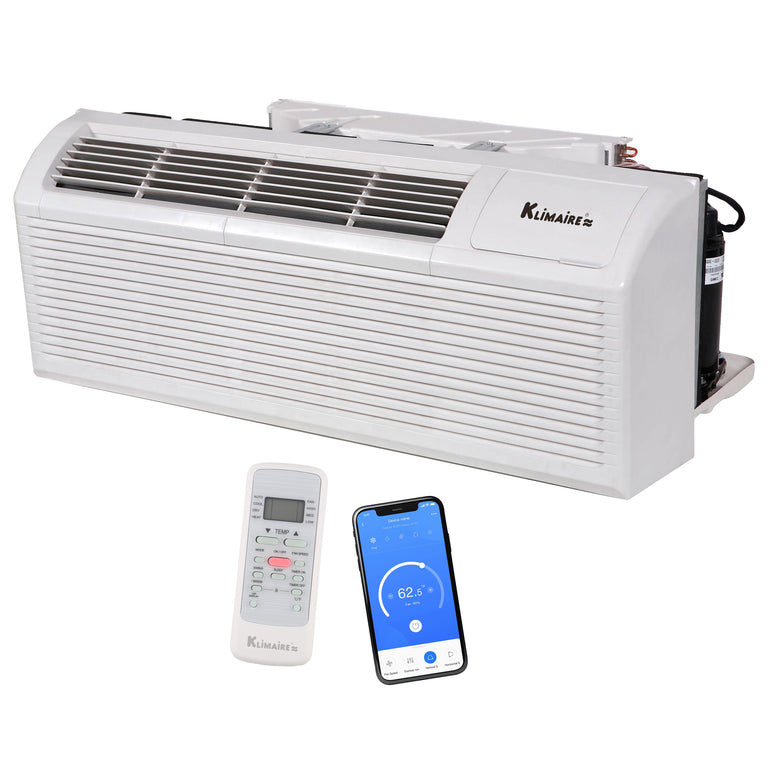

Klimaire PTHP-KC-3 Series – Packaged Terminal AC & Heat Pump Units R-32 Up to 5 kW Heater and Wi-Fi – 208–230V

Packaged Terminal AC & Heat Pump Systems

All-in-One Zoned Cooling & Heating Solution
Affordable for Multi Family & Lodging, Sunrooms
and Assisted Living Facilities

Klimaire PTHP R-32 Series Packaged Terminal Heat Pump Units with Backup Electric Heater

  • Available Capacities
    • 9,000 – 15,000 BTU
    • Ideal for hospitality, residential, and light-
commercial spaces.
  • Energy-Efficient Performance
    • Up to 11.4 EER2
    • R-32 Refrigerant
  • All-in-One Heating & Cooling
    • Delivers heat pump and electric heat backup
in a single, self-contained unit.
  • Flexible Control Options
    • Adjust settings using the onboard LED display,
included remote, or built-in Wi-Fi with the
NetHome Plus App.
    • Supports voice commands
via Alexa and Google Home.
  • Easy Installation & Replacement
    • Fits standard 42" x 16" wall openings.
Ideal for new installations or direct
replacement of existing units.
  • Advanced Thermostat Compatibility
& Central Control
    • Compatible with 24V thermostats and includes
a front desk reserved port for centralized
management, ideal for hospitality applications.

Built to Fit. Engineered to Perform.

The new Klimaire PTHP Heat Pump R-32 Series delivers reliable heating and cooling in a compact, self-contained unit designed for quiet operation and energy-efficient performance. It’s an ideal solution for hotels, apartments, dormitories, offices, and other light-commercial spaces where comfort and reliability matter.

Featuring 4-in-1 functionality with Cool, Dry, Heat, and Fan modes, the system utilizes a high-efficiency heat pump for primary heating and automatically engages built-in electric resistance backup heat when additional heating is required, ensuring consistent comfort in varying conditions. The unit offers multiple control options for added flexibility. It can be operated directly on the unit through the digital control panel, adjusted using the included wireless remote, or connected to standard 24V thermostat wiring for centralized front-desk or building management control.

Designed for both replacement and new installations, Klimaire PTACs combine broad compatibility with a stylish, slim front design that maximizes usable room space. They fit most standard 42″ × 16″ wall openings, making them a seamless replacement for older units from major brands. For new installations, Klimaire-branded wall sleeves and rear grilles are available to ensure a precise fit and long-term performance.

WIFI Connection

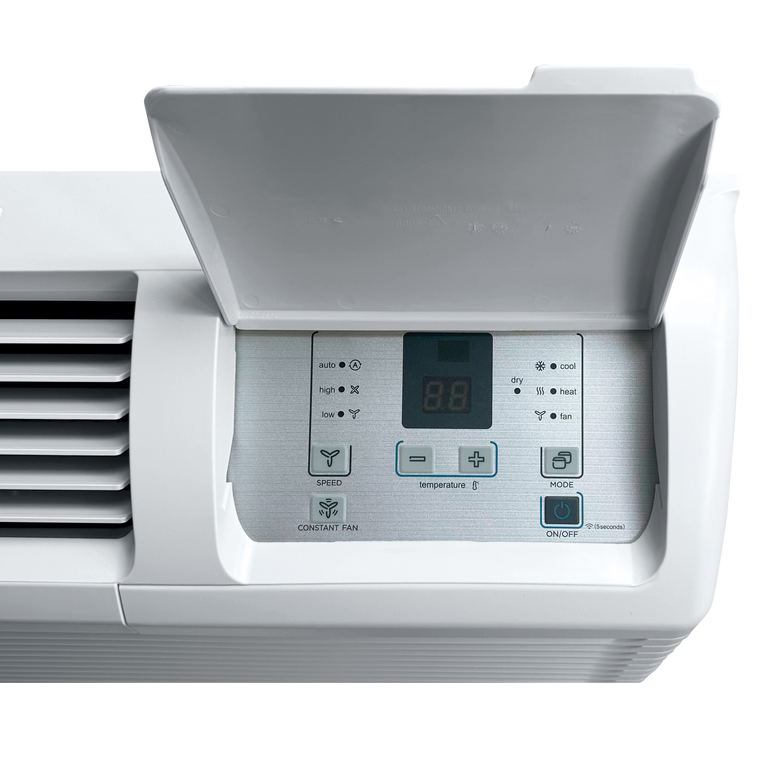

Digital Display Control Panel

User-friendly LED display with push-button controls clearly shows temperature, operating modes, and diagnostic error codes for quick troubleshooting and easy operation.

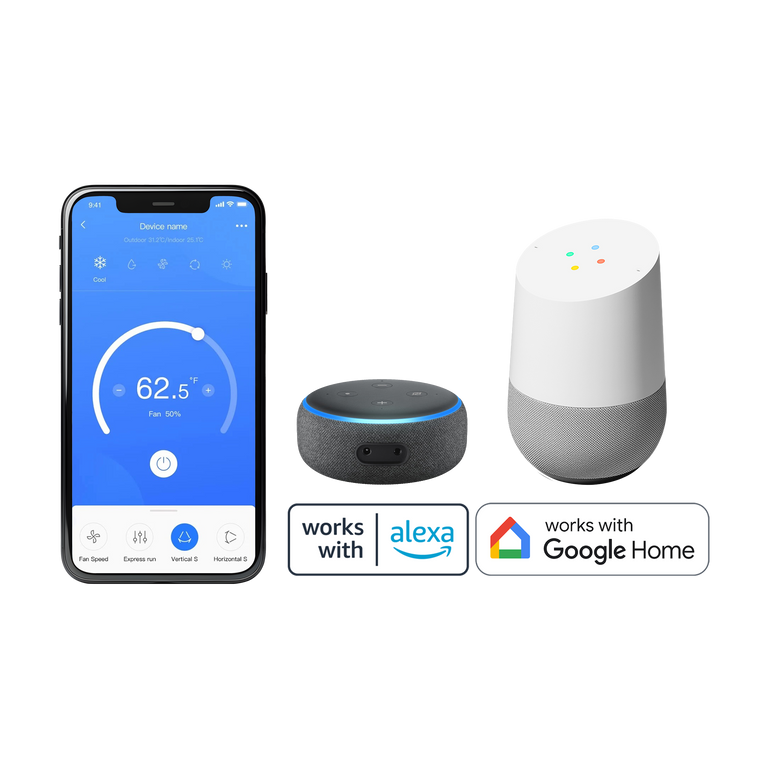

Wi-Fi Smart Control Ready

Built-in Wi-Fi lets you monitor and adjust your unit anytime, anywhere using the NetHome Plus App, with optional Alexa and Google Home compatibility for hands-free control.

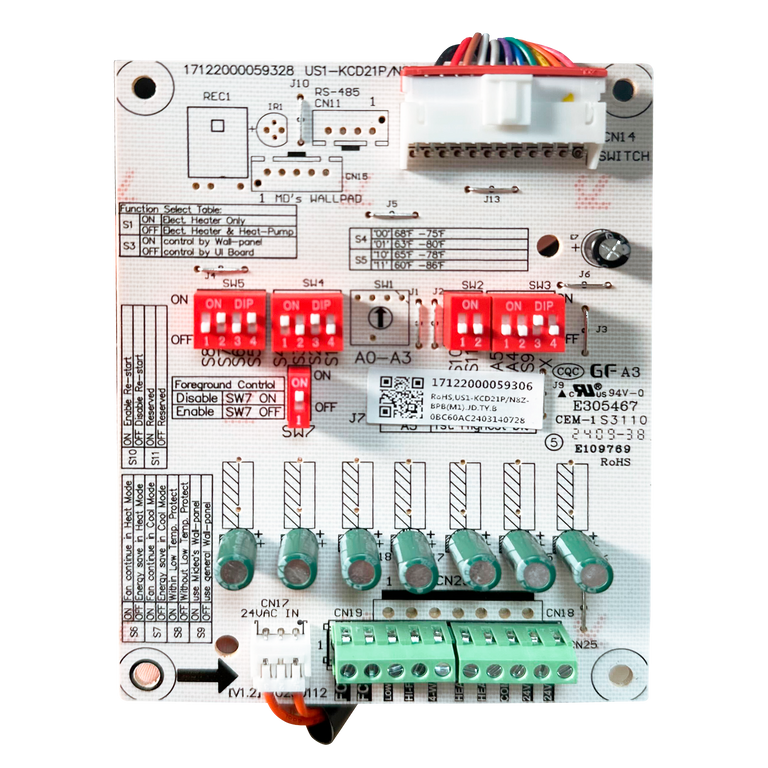

DIP Switch Configurations

Built-in DIP switches allow customized temperature limits and operating modes, supporting on-unit, wall thermostat, wireless remote, or front-office control—perfect for hospitality applications.

Factory-Installed Power Cord

Comes with a 3-prong grounding plug, manual reset, current detection, and circuit interrupter for added safety and reliability.

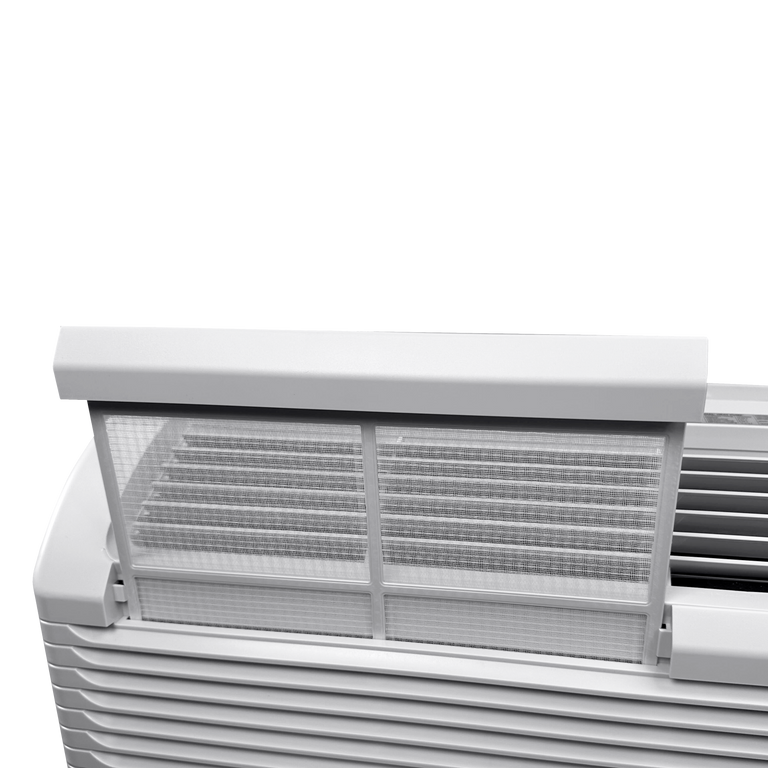

Fresh Air Intake

Adjustable fresh air damper introduces outdoor air to improve indoor air quality, with a washable mesh filter that helps reduce dust and pollutants.

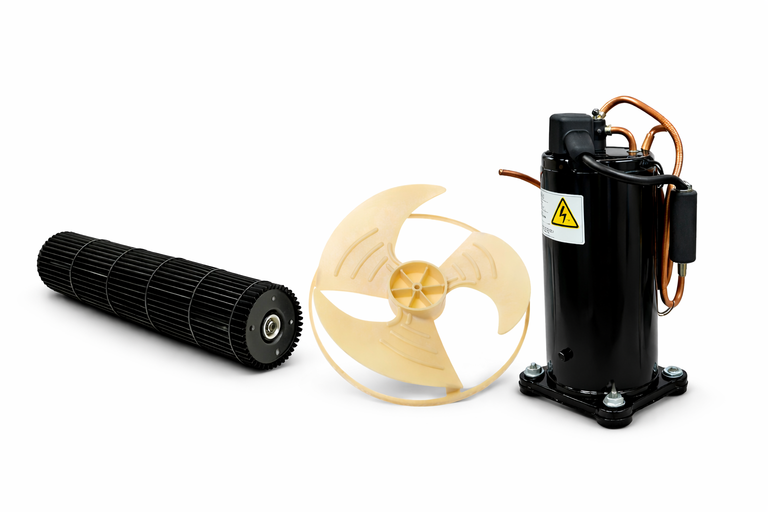

Dual Fan Motors & High-Efficiency Compressor

Separate indoor and outdoor fan motors paired with a high-efficiency compressor deliver balanced airflow, quiet operation, and consistent heating and cooling performance.

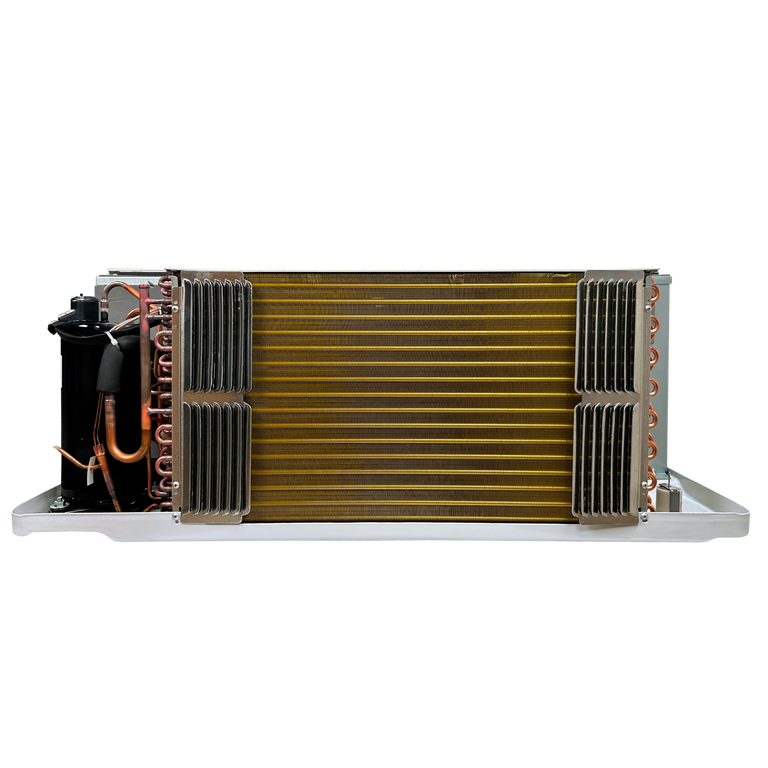

Enhanced Golden Fin Protection

Golden Fin–coated coils improve heat transfer efficiency and provide superior corrosion resistance for long-term durability in humid or harsh environments.

Factory Charged with R-32

Each unit comes factory charged with R-32 refrigerant, allowing for faster installation and reliable heating and cooling performance right out of the box.


Features

Convenience


Comfort


Performance


Reliability


Wi-Fi Enabled (Built-In or Optional Controller)

Enables remote operation and monitoring of the system through a smart device when connected to a Wi-Fi network.

Auto Restart

Automatically restores the unit to its previous operating mode and settings after a power interruption.

Dry (Dehumidification) Mode

Reduces indoor humidity by removing excess moisture from the air while maintaining comfort.

Fan Mode

Circulates indoor air without heating or cooling for ventilation and air movement.

Cooling Mode

Provides efficient cooling to quickly and evenly reduce indoor temperature.

Heat Mode

Efficient heating powered by the built-in heat pump for consistent comfort and energy savings.

24V Mini-Interface

Enables seamless compatibility with standard 24V thermostats, allowing the system to integrate easily with both existing and new wiring in homes or buildings, simplifying installation and expanding control options.

TU1 Copper

Uses high-grade TU1 copper tubing for superior heat transfer, durability, and corrosion resistance, ensuring long-lasting efficiency and reliability.

Included Accessories

Every Klimaire PTAC unit comes complete with essential accessories for quick installation,
reliable performance, and flexible control.

Wireless Remote Control

Adjust settings easily from anywhere in the room
with the included handheld remote.

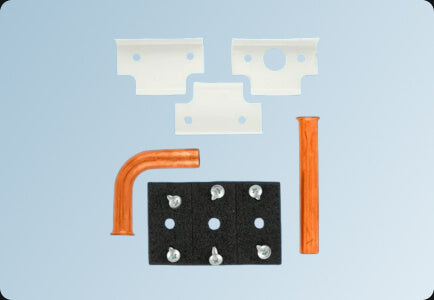

Drain Kit

Supports proper condensate drainage and ensures
efficient performance right out of the box.

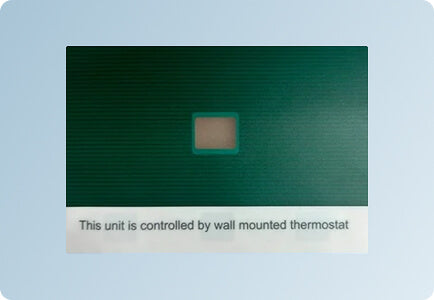

Control Panel Sticker

Provides clear labeling when the unit is controlled
via a wall-mounted thermostat — ideal for hotels
and managed properties.

Long-Lasting Washable Filter

A durable, washable polypropylene filter helps capture dust and particles while allowing easy removal and cleaning for improved air quality and reduced maintenance.

Product Documentation

BROCHURE
TECHNICAL SPECIFICATIONS
USERS MANUAL
INSTALLATION MANUAL
Service Manual

PTHP Unit Sizes & Power Options

Klimaire PTAC units are available in 9,000, 12,000, and 15,000 BTU capacities—
ideal for a variety of room sizes and applications.

Each model comes standard with a 3.5kW auxiliary heater and an LCDI 6-20P plug.
For increased heating demand, the 15,000 BTU unit is also offered with a 5kW
auxiliary heater and a 6-30P plug.

  • Auxiliary Heater Power (kW)
  • Cooling Capacity (Total / Min–Max)
  • EER2 (Energy Efficiency Rating)
  • Electric Heater Heating Capacity
  • Heat Pump Heating Capacity
  • Indoor Net / Gross Weight
  • Outdoor Operating Cooling / Heating Range
  • Power Plug Type
  • Power Supply
  • Refrigerant Type
  • Sound Levels (Indoor / Outdoor)
  • Unit Dimensions (W × D × H) Width x Height x Depth
Productvariantdrop
PTHP 9,000 BTU – 3.5 kW / 20A
3rd Generation
Model Number: PTHP09H352-KC-3
3.5 kW
9,300 / 9,200 (BTU/h)
11.4 EER2
10,900 / 8,900 (BTU/h)
8,100 / 7,900 (BTU/h)
99.2 / 108.03 lbs
48°F–109°F / 23°F–75°F
LCDI (6-20P)
208–230V / 1Ph / 60Hz
R-32
50 / 49.5 dB(A)
42.01 x 15.98 x 20.94
Productvariantdrop
PTHP 12,000 BTU – 3.5 kW / 20A
3rd Generation
Model Number: PTHP12H352-KC-3
3.5 kW
12,000 / 11,800 (BTU/h)
10.5
10,900 / 8,900
10,800 / 10,500
110.23  / 119.05 bs
48°F–109°F / 23°F–75°F
LCDI (6-20P)
208–230V / 1Ph / 60Hz
R-32
53 / 52.5 dB(A)
42.01 × 15.98 × 20.94 in
Productvariantdrop
PTHP 15,000 BTU – 3.5 kW / 20A
3rd Generation
Model Number: PTHP15H352-KC-3
3.5 kW
15,000 (BTU/h)(14,500-14,700)
10.6
10,900 / 8,900 (BTU/h)
13,500 / 13,200 (BTU/h)
113.54 / 122.36 lbs
48°F–109°F / 23°F–75°F
LCDI (6-20P)
208–230V / 1Ph / 60Hz
R-32
53 / 52.5 dB(A)
42.01 x 15.98 x 20.94
Productvariantdrop
PTHP 15,000 BTU – 5 kW / 30A
3rd Generation
Model Number: PTHP15H502-KC-3
5.0 kW
15,000 (BTU/h)(14,500-14,700)
10.6
10,900 / 8,900 (BTU/h)
13,500 / 13,200 (BTU/h)
113.54 / 122.36 lbs
48°F–109°F / 23°F–75°F
LCDI (6-30P)
208–230V / 1Ph / 60Hz
R-32
53 / 52.5 dB(A)
42.01 x 15.98 x 20.94

Where to Purchase

Where to Purchase

Where to Purchase

Where to Purchase

AHRI
UL Listed
Golden Fins
5 year compressor warranty
2 year parts limited warranty
