Klimaire KTIS/KTIR-KSIE Series — 4-Way Compact Round-Flow Ceiling Cassette Mini Split Heat Pump Air Conditioner (2nd Generation)

Single-Zone Heating & Cooling Mini Split

Ceiling Cassete

KTIS-KSIE Series — Ceiling Cassette Mini Split (NEW 4th Generation)

  • Energy-Efficient Performance
    • Up to 11.4 EER2
    • R-32 Refrigerant
  • Energy Efficient Performance

    • Up to 23.1 SEER2
    • Up to 12.5 EER2
    • Up to 10.6 HSPF2
  • Complete Temperature Control

    Each indoor unit operates independently,
allowing personalized settings in every room
for total comfort.

  • Space-Saving Multi-Port Design
    • Compact side-discharge condenser connects multiple indoor units with independent room control, supporting 2–6 zones for residential and commercial spaces.
7-Year Compressor & 5-Year Parts Warranty

Backed by a 7-year compressor and 5-year parts warranty upon registration. Long-term protection. Proven reliability.

ON/OFF 24 hr. Programmable Timer

Timer can be set ON / OFF easily 24 hours in haf hour increments using the wireless remote control.

All-Season Comfort

The outdoor unit delivers efficient performance in outdoor temperatures from 5°F to 122°F for cooling, and 5°F to 86°F for heating—ensuring year-round reliability in a variety of climates.

Self-Diagnosis & Refrigerant Leak Detection

The system monitors performance and displays error codes for issues like overheating, faults, or low refrigerant—helping diagnose problems quickly while safeguards prevent damage and ensure reliable operation.


Features

Energy Saving


Reliability


Comfort


Convenience


Performance


IAQ (Indoor air Quality)

Ensures the indoor unit improves air quality by removing contaminants, allergens, and odors, providing cleaner and healthier air inside the building.

Seasonal Energy Efficiency Ratio

SEER stands for Seasonal Energy Efficiency Ratio, and it measures the annual energy consumption and efficiency of the unit’s cooling ability in typical day-to-day use. The higher the SEER value, the less energy the unit will use.

he Department of Energy (DOE) is changing the way HVAC systems are tested. New M1 testing procedures are thorough, demanding a lower SEER2 equipment rating and thus paving the way for a more sustainable future.

Cold Mode

This symbol signifies that the air conditioner will cool the room by removing heat from the indoor air.

Dry (Dehumidification) Mode

Reduces indoor humidity by removing excess moisture from the air while maintaining comfort.

Self-Diagnosis

Monitors system operation and displays error codes to assist with troubleshooting and service.

Fan Mode

Circulates indoor air without heating or cooling for ventilation and air movement.

°C / °F Temperature Display Change

Allows switching between Celsius and Fahrenheit temperature display formats.

Turbo Mode

Temporarily boosts system output to rapidly cool or heat the space.

Product Documentation

KTIS/KTIR-KSIE Series - Brochure
KTIR SERIES Series - Installation Manual
KTIR SERIES - USER´S MANUAL
KPI Central Ducted & Light Commercial - Limited Warranty
  • Cooling Capacity
  • Energy Efficiency
  • Heat Pump Heating Capacity
  • Indoor Net / Gross Weight (KTIR 18)
  • Power Supply
  • Refrigerant Precharge
  • Sound Levels
Productvariantdrop

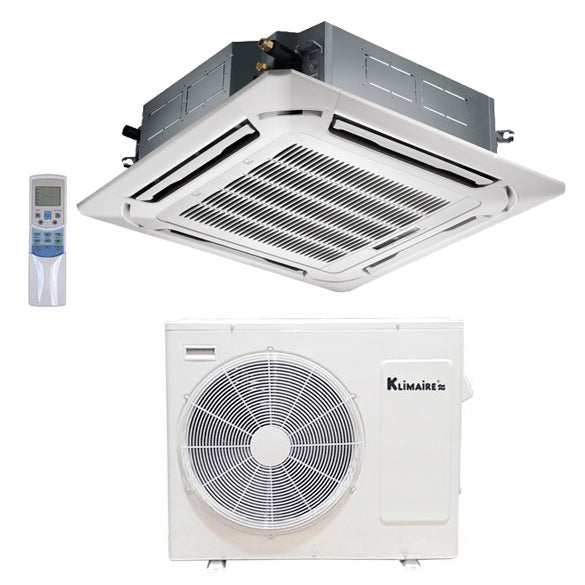

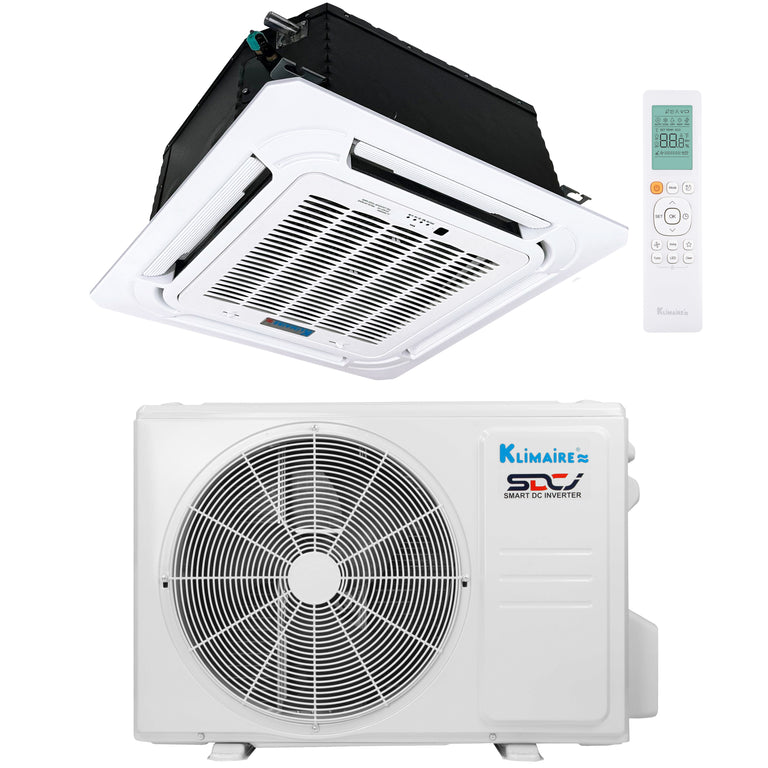

18,000 BTU KTIS/KTIR-KSIE Series — 4-Way Compact Round-Flow Ceiling Cassette Ductless Mini Split Air Conditioner - 208-230V
2nd Generation
Model Number: KSIE018-H220-O-2 + KTIR18-H2 + KTIR12-DFP
18,000 BTU
SEER2: 20.5 / EER2: 12.5 / HSPF2: 10.5
18,000 BTU
5.5/9.9
208-230/1/60
25
44/39/36
Productvariantdrop

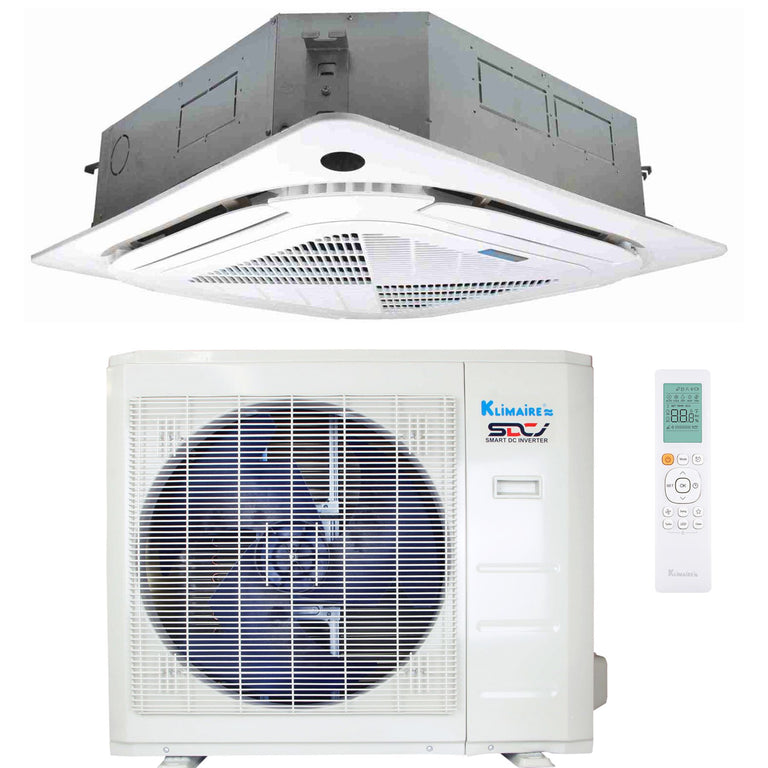

24,000 BTU KTIS/KTIR-KSIE Series — 4-Way Compact Round-Flow Ceiling Cassette Ductless Mini Split Air Conditioner - 208-230V
2nd Generation
Model Number: KSIE024-H220-O-2 + KTIS24-H2 + KTIR468-DFP
24,000 BTU
21.5 EER2 / 12.5 HSPF4 / 9.7 EER2
24000 BTU
5.5/9.9
208-230/1/60
25
44/39/36
Productvariantdrop
36,000 BTU KTIS/KTIR-KSIE Series — 4-Way Compact Round-Flow Ceiling Cassette Ductless Mini Split Air Conditioner - 208-230V
2nd Generation
Model Number: KSIR036-H218-2 + KTIR036-H2G1-2 + KTIR234-DFP
36,000 BTU
SEER2: 19.2 / EER2: 9.4 / HSPF2: 8.8
36,000
11.0/17.6
208-230~1-60
25
55/52/49
Productvariantdrop

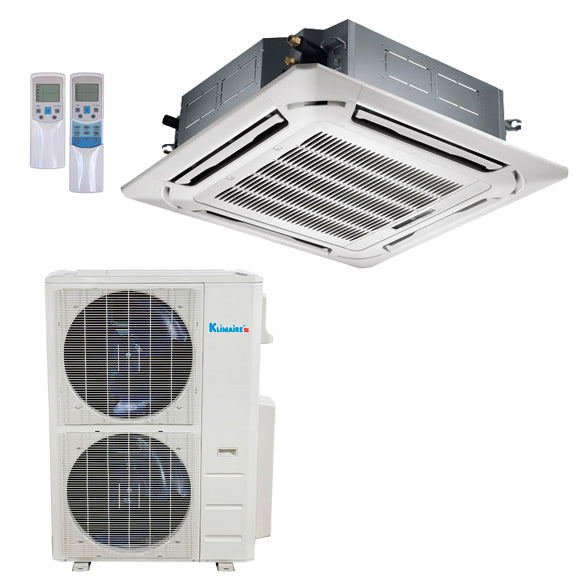

48,000 BTU KTIS/KTIR-KSIE Series — 4-Way Compact Round-Flow Ceiling Cassette Ductless Mini Split Air Conditioner - 208-230V
2nd Generation
Model Number: KSIR048-H218-2 + KTIR048-H2G1-2 + KTIR234-DFP
48,000 BTU
SEER2 18.5 / EER2 9.5 / HSPF2 9.8
48,000 BTU
11.0/17.6
208-230~1-60
25
55/52/49
