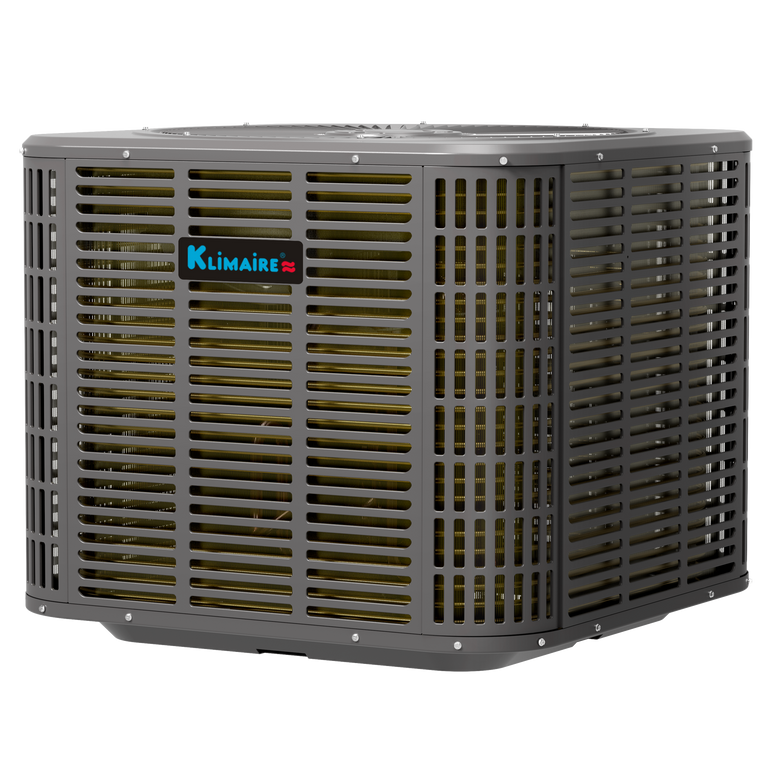

Klimaire KOIT Series – Variable Speed Heat Pump Condensing Unit (R454B) – 208–230V

Product Documentation

KOIT Series - Installation Manual
KOIT-KIDT Series - Brochure
KOIT KIDT Series - Service Manual
KOIT KIDT Series - Troubleshooting
  • Cooling Capacity (Total / Min–Max)
  • Energy Efficiency
  • Heating Capacity (Total / Min–Max)
  • line set length min max
  • line set size liquid gas
  • Liquid / Gas Size
  • max over current protection
  • max pipe elevation
  • Minimum Circuit Ampacity (MCA)
  • Operational Cooling / Heating Range
  • Outdoor Net / Gross Weight
  • Outdoor Operating Cooling / Heating Range
  • outdoor sound pressure level
  • Package Dimension (W x D x H)
  • Refrigerant Precharge
  • Refrigerant Type
  • valve size liquid suction
  • voltage range
Productvariantdrop
2 Ton 24,000 BTU Klimaire KOIT Series – Variable Speed Heat Pump Condensing Unit (R454B) – 208–230V
1st Generation
Model Number: KOIT24H2-41G
24,000 BTU (7,000 - 25,000 BTU)
18 SEER2 / 9 HSPF2-4 / 10 EER2
24,000 BTU (7,000 - 25,000 BTU)
25 - 100 ft
3/8 - 3/4 in
3/8-3/4 in
25 A
50 ft
16 A
5 - 125℉ / -5 - 80℉
137 / 159 lb
5 - 125℉ / -5 - 80℉
67 dB(A)
30-1/4 x 30-1/4 x 31-1/4 in
25 ft
R-454B
3/8 - 3/4 in
208/230V / 1 Ph / 60 Hz
Productvariantdrop
3 Ton 36,000 BTU Klimaire KOIT Series – Variable Speed Heat Pump Condensing Unit (R454B) – 208–230V
1st Generation
Model Number: KOIT36H2-41G
34,000 BTU (8,000 - 36,000 BTU)
19 SEER2 / 9 HSPF2-4 / 10 EER2
34,000 BTU (8,000 - 36,000 BTU)
25 - 100 ft
3/8 - 3/4 in
3/8-3/4 in
35 A
50 ft
22 A
5 - 125℉ / -5 - 80℉
146 / 176 lb
5 - 125℉ / -5 - 80℉
68 dB(A)
30-1/4 x 30-1/4 x 31-1/4 in
25 ft
R-454B
3/8 - 3/4 in
208/230V / 1 Ph / 60 Hz
Productvariantdrop
4 Ton 48,000 BTU Klimaire KOIT Series – Variable Speed Heat Pump Condensing Unit (R454B) – 208–230V
1st Generation
Model Number: KOIT48H2-41G
53,000 BTU (9,400 - 53,000 BTU)
17 SEER2 / 8.2 HSPF2-4 / 7.5 EER2
53,000 BTU (9,400 - 53,000 BTU)
25 - 100 ft
3/8 - 7/8 in
3/8-7/8 in
60 A
50 ft
35 A
5 - 125℉ / -5 - 80℉
190 / 220 lb
5 - 125℉ / -5 - 80℉
70 dB(A)
30-1/4 x 30-1/4 x 39-1/2 in
25 ft
R-454B
3/8 - 3/4 in
208/230V / 1 Ph / 60 Hz
Productvariantdrop
5 Ton 60,000 BTU Klimaire KOIT Series – Variable Speed Heat Pump Condensing Unit (R454B) – 208–230V
1st Generation
Model Number: KOIT60H2-41G
53,000 BTU (9,400 - 53,000 BTU)
17 SEER2 / 8.2 HSPF2-4 / 7.5 EER2
53,000 BTU (9,400 - 53,000 BTU)
25 - 100 ft
3/8 - 7/8 in
3/8-7/8 in
60 A
50 ft
35 A
5 - 125℉ / -5 - 80℉
190 / 220 lb
5 - 125℉ / -5 - 80℉
70 dB(A)
30-1/4 x 30-1/4 x 39-1/2 in
25 ft
R-454B
3/8 - 3/4 in
208/230V / 1 Ph / 60 Hz
