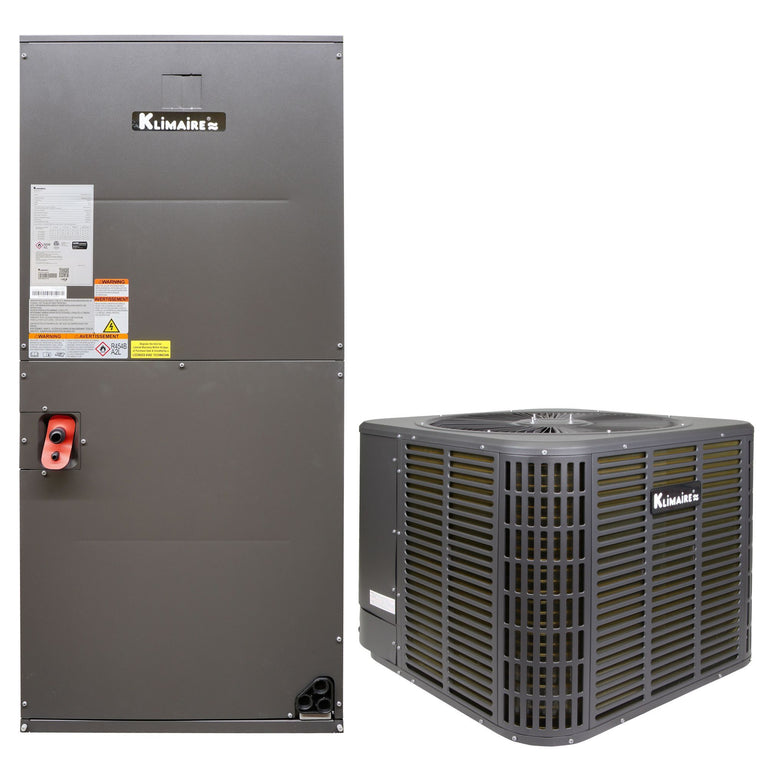

Klimaire KOIT–KIDT Series – Central Ducted Multi-Position Split Heat Pump System (R454B) – 208-230V

Product Documentation

KIDT - Installation Manual
KOIT Series - Installation Manual
KOIT-KIDT Series - Brochure
KOIT KIDT Series - Troubleshooting
KOIT KIDT Series - Service Manual
  • Cooling Capacity (Total / Min–Max)
  • Energy Efficiency
  • external static pressure up to
  • Heating Capacity (Total / Min–Max)
  • line set length min max
  • Liquid / Gas Size
  • max pipe elevation
  • Indoor Net / Gross Weight
  • Outdoor Net / Gross Weight
  • Outdoor Operating Cooling / Heating Range
  • outdoor sound pressure level
  • Refrigerant Precharge
  • Refrigerant Type
  • Sound Levels
  • valve size liquid suction
Productvariantdrop
2 Ton 24,000 BTU Klimaire KOIT–KIDT Series – Central Ducted Multi-Position Split Heat Pump System - 208-230V
1st Generation
Model Number: KOIT24H2-41G + KIDT24H2-41X
24,000 BTU (7,000 - 25,000 BTU)
18 SEER2 / 9 HSPF2-4 / 10 EER2
0.8 in.WC
24,000 BTU (7,000 - 25,000 BTU)
25 - 100 ft
3/8-3/4 in
50 ft
122 / 154 lb
137 / 159 lb
5°F – 125°F / -5°F – 80°F
67 dB(A)
25 ft
R-454B
57 dB(A)
3/8 - 3/4 in
Productvariantdrop
3 Ton 36,000 BTU Klimaire KOIT–KIDT Series – Central Ducted Multi-Position Split Heat Pump System - 208-230V
1st Generation
Model Number: KOIT36H2-41G + KIDT36H2-41X
34,000 BTU (8,000 - 36,000 BTU)
19 SEER2 / 9 HSPF2-4 / 10 EER2
0.8 in.WC
34,000 BTU (8,000 - 36,000 BTU)
25 - 100 ft
3/8-3/4 in
50 ft
122 / 154 lb
146 / 176 lb
5°F – 125°F / -5°F – 80°F
68 dB(A)
25 ft
R-454B
58 dB(A)
3/8 - 3/4 in
Productvariantdrop
4 Ton 48,000 BTU Klimaire KOIT–KIDT Series – Central Ducted Multi-Position Split Heat Pump System - 208-230V
1st Generation
Model Number: KOIT48H2-41G + KIDT48H2-41X
53,000 BTU (9,400 - 53,000 BTU)
17 SEER2 / 8.2 HSPF2-4 / 7.5 EER2
0.8 in.WC
53,000 BTU (9,400 - 53,000 BTU)
25 - 100 ft
3/8-7/8 in
50 ft
154 / 190 lb
190 / 220 lb
5°F – 125°F / -5°F – 80°F
70 dB(A)
25 ft
R-454B
62 dB(A)
3/8 - 3/4 in
Productvariantdrop
5 Ton 60,000 BTU Klimaire KOIT–KIDT Series – Central Ducted Multi-Position Split Heat Pump System - 208-230V
1st Generation
Model Number: KOIT60H2-41G + KIDT60H2-41X
53,000 BTU (9,400 - 53,000 BTU)
17 SEER2 / 8.2 HSPF2-4 / 7.5 EER2
0.8 in.WC
53,000 BTU (9,400 - 53,000 BTU)
25 - 100 ft
3/8-7/8 in
50 ft
154 / 190 lb
190 / 220 lb
5°F – 125°F / -5°F – 80°F
70 dB(A)
25 ft
R-454B
62 dB(A)
3/8 - 3/4 in
