Klimaire KMIP-KIWP DIY Series – Do-It-Yourself Multi-Zone Heat Pump Mini Split System R-454B – 208–230V

Supports 2-5 Zone Configurations

Do it Easy, Do it for Less & Do it Quick

KMIP Series – Key Features

  • Available Capacities
    • 18,000 BTU - 42,000 BTU
  • Refrigerant Type
    • R-454B (Factory Pre-Charged)
  • Voltage

    • 208/230V, Single Phase, 60Hz
  • Performance Level
    • Standard
  • Operating Temperature Range
    • * Heating (9K-24K): -13°F – 86°F / Heating (36K): -4°F – 86°F
    • * Cooling (9K-24K): 5°F – 131°F / Cooling (36K): 5°F – 122°F

Customizable comfort for every
room, designed for 2 to 5 zones.

The KMIP outdoor unit delivers powerful, energy-efficient performance for up to five zones. Equipped
with advanced inverter technology, it provides consistent heating and cooling while minimizing energy consumption. Achieve perfect comfort in every corner of your home with multiple indoor unit combinations and a wide range of ODUs. Designed for seamless cooling adaptability, Klimaire multi-zone ensures efficient, customized climate control for any space. Available in sizes ranging from 18,000 to 42,000 BTU, the KMIP system is built to perform in extreme conditions—cooling in ambient temperatures from -13°F to 122°F and heating from -13°F to 75°F.

Designed for ultimate adaptability, the Klimaire Multi zone system ensures powerful, even cooling in every corner of your space. With multiple combinations and a wide range of OUs, it offers a customized climate solution. Its quiet operation makes it ideal for both residential and light commercial spaces. The compact, space-saving design allows for flexible installation, even in tight outdoor areas. KMIP units are compatible with a full range of indoor unit styles—wall-mounted, ceiling cassette, ducted recessed, and floor/ceiling—offering unmatched flexibility for a fully customized comfort solution that fits your space, your needs, and your style.

Install It Yourself - No HVAC Needed

Factory-sealed R-454B EZ-Kuick
Connect line set with secure fittings plus pre-attached plug-in 4-wire
communication cable for true plug-and-play installation.
No vacuum pump. No gauges. No refrigerant handling. No field wiring.

7-Year Compressor & 5-Year Parts Warranty

Backed by a 7-year compressor and 5-year parts warranty upon registration. Long-term protection. Proven reliability.

Refrigerant Leak Detection

Features continuous monitoring of refrigerant levels and provides alerts if a leak is detected—helping prevent damage, reduce downtime, and keep your comfort uninterrupted.

Factory Pre-Charged with R-454B

The outdoor unit comes factory pre-charged with next-generation R-454B refrigerant — delivering lower environmental impact and improved efficiency. Faster startup. Reliable performance right out of the box.

Golden Fin, Grille & Valve Protection

Manufactured with a Golden Fin coating to resist rust and corrosion, plus a reinforced grille and secure valve cover for lasting protection and performance.



Self-Diagnosis & Error Code Display

Built-in diagnostics automatically detect system irregularities and display error codes for quick troubleshooting — simplifying service and reducing downtime.

4-Way Airflow

Independent vertical and horizontal swing control directs airflow exactly where it’s needed for consistent, room-wide comfort.

Advanced Air Quality (IAQ)

3-in-1 multi-stage filtration captures dust, neutralizes bacteria, and reduces odors — delivering cleaner, fresher indoor air every day.

Ultra-Quiet Precision - As Low As 30 dB(A)

Engineered for whisper-level performance. Advanced DC inverter technology maintains consistent comfort with minimal sound.


Included Accessories

(2) 3-in-1 Multi-Stage Filters

Advanced 3-in-1 filtration featuring Tea Polyphenol, Anion + Vitamin C, and Photocatalyst + Active Carbon + Static-Free layers — designed to capture dust, neutralize odors, and enhance indoor air quality.

Anti-Vibration Pad Set (4-Pack)

Set of four heavy-duty rubber pads that reduce vibration and noise while stabilizing the outdoor unit. Protects mounting surfaces and helps keep the system securely in place.

Pre-Charged Ez Kuick Connect Line Set

Factory pre-charged with R-454B refrigerant and equipped with sealed Quick Connect fittings for fast, secure installation — no vacuuming, gauges, or refrigerant handling required.

Pre-Attached Connecting Cable

Factory-attached 27.5 ft 4×16 AWG communication cable comes pre-wired to the indoor unit and features a secure plug-in connector for quick connection to the outdoor unit — no field wiring required.

Washable Front Mesh Air Filter Set

Includes two reusable front mesh filters installed under the front panel of the unit to capture dust and particles from incoming air.

Optimized Wall Mounting Bracket

Engineered for accurate alignment and flexible piping routes, helping simplify installation and ensure a secure wall fit.

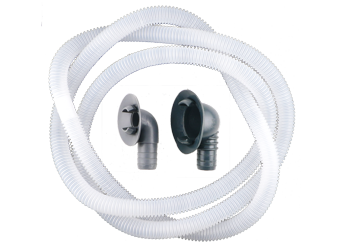

Drain Hose with Drain Joints & Seals

Includes a flexible drain hose with 2 drain joints and seals for a secure, leak-resistant condensate connection. Designed for proper drainage and reliable installation.

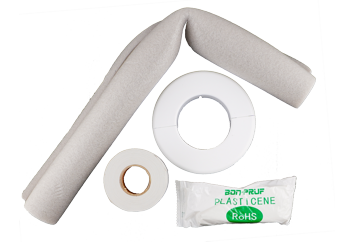

Complete Installation Finishing Kit

Includes wall sleeve, Wall cap, Clay mastic seal pack, Decorative wrap tapes, and pipe insulation. Designed to seal and protect wall penetrations while delivering a clean, weather-tight, professional finish.

Product Documentation

KIWP-KMIP User´s and Installation Manual

Enhance Your Setup
with Optional Accessories

Improve installation, protection, and system appearance with accessories designed to complement your Klimaire mini split system.

Essential Accessory:

Compare Outdoor Units
For Your Multi-Zone System

Easily find the right Klimaire KIWP outdoor unit for your setup.
Compare capacities, zone support, efficiency ratings, and compatible
indoor unit styles—all in one place. Choose the unit that fits your space,
performance needs, and number of zones.

  • Cooling Capacity (Total / Min–Max)
  • Energy Efficiency
  • Heating Capacity (Total / Min–Max)
  • Liquid / Gas Size
  • Operational Cooling / Heating Range
  • Power Supply
  • Refrigerant Precharge
  • Refrigerant Type
  • room temperature cooling heating
  • Sound Levels
  • Unit Dimensions (W × D × H) Indoor
  • Zone Capacity
Productvariantdrop

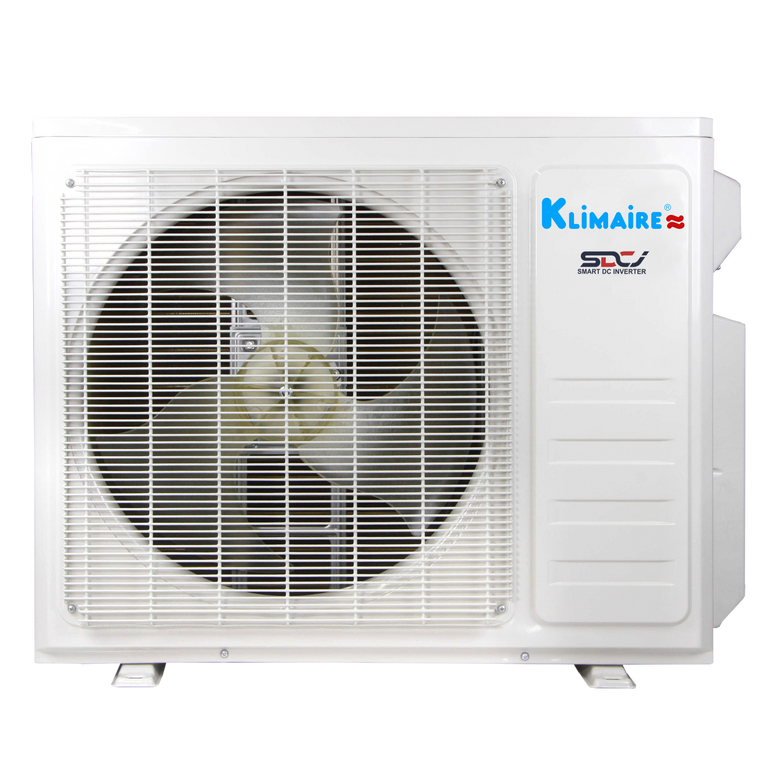

18000 KMIP-KIWP DIY Series – Multi-Zone Do-It-Yourself Heat Pump Mini Split System
1st Generation
Model Number: KMIP218-H225-4
18,000 BTU (4,000 - 19,000 BTU)
Up to 24 SEER2 / Up to 10.5 HSPF2 / Up to 13 EER2
20,000 BTU(3,500-23,000)
2 x 1/4in / 2 x 3/8in
5~131 F / -13~86 F
208/230V~/60Hz/1P
Yes
R-454B
61~86 F
58 dB(A)
36-1/2'' x 14-7/8'' x 27-1/2''
2 Zones
Productvariantdrop

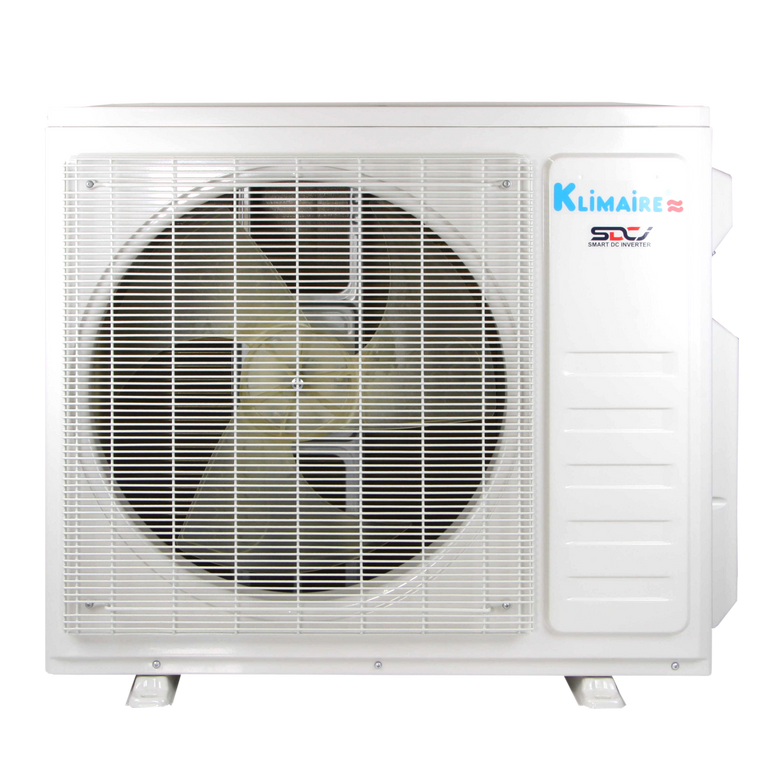

27000 KMIP-KIWP DIY Series – Multi-Zone Do-It-Yourself Heat Pump Mini Split System
1st Generation
Model Number: KMIP327-H225-4
27,000 BTU(4500-31000)
Up to 24 SEER2 / Up to 10.5 HSPF2 / Up to 12 EER2
28,000 BTU(4500-33000)
3 x 1/4in / 2 x 3/8in
5~131 F / -13~86 F
208/230V~/60Hz/1P
Yes
R-454B
61~86 F
62 dB(A)
38-1/2'' x 16-5/8'' x 31-5/8''
3 Zones
Productvariantdrop

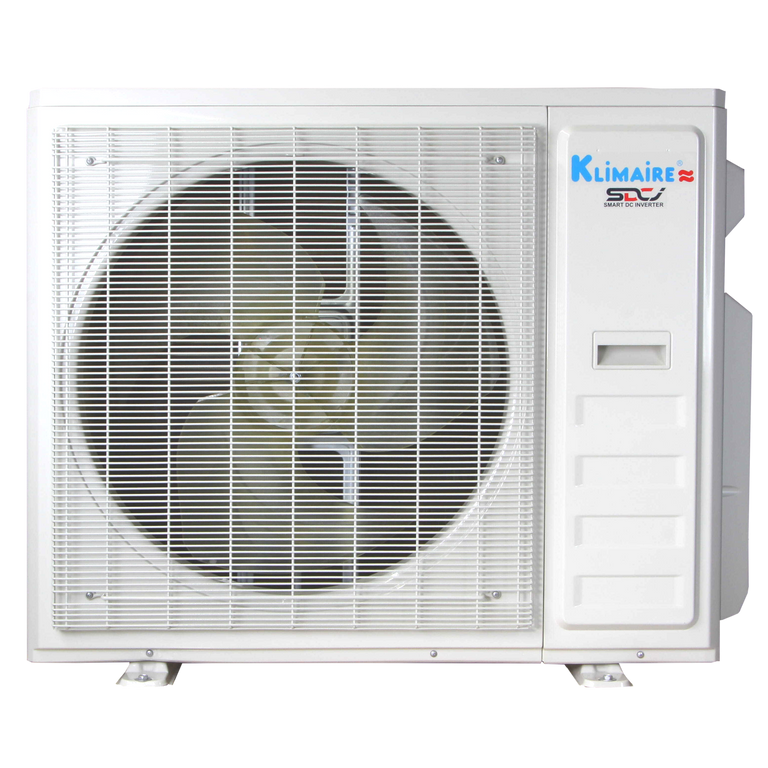

36000 KMIP-KIWP DIY Series – Multi-Zone Do-It-Yourself Heat Pump Mini Split System
1st Generation
Model Number: KMIP436-H223-4
35,000 BTU(5500-7500)
Up to 23 SEER2 / Up to 10.0 HSPF2 / Up to 11.1 EER2
36,000 BTU(5500-41000)
3 x 1/4in / 2 x 3/8in
5~131 F / -13~86 F
208/230V~/60Hz/1P
Yes
R-454B
61~86 F
65 dB(A)
42-1/4'' x 18-3/8'' x 33-5/8''
4 Zones
Productvariantdrop

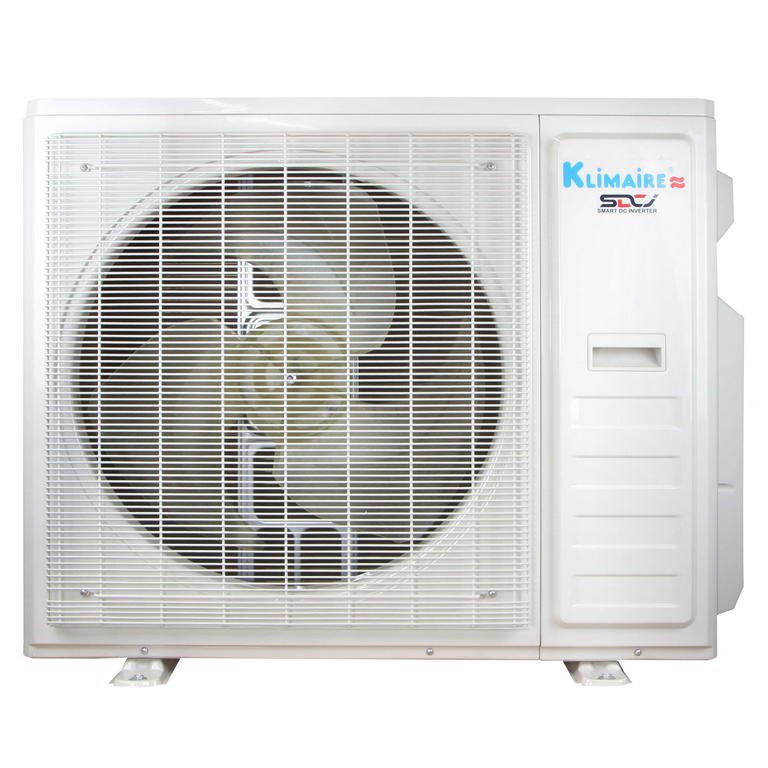

42000 KMIP-KIWP DIY Series – Multi-Zone Do-It-Yourself Heat Pump Mini Split System
1st Generation
Model Number: KMIP542-H221-4
42,000 BTU(6500-46000)
Up to 23 SEER2 / Up to 10.0 HSPF2 / Up to 11.2 EER2
42,000 BTU(6500-46000)
3 x 1/4in / 2 x 3/8in
5~131 / -13~86
208/230V~/60Hz/1P
Yes
R-454B
61~86 F
65 dB(A)
42-1/4'' x 18-3/8'' x 33-5/8''
5 Zones
