Klimaire KIWU-KOIU U-PRO Series - High Wall-Mounted Mini Split Heat Pump Air Conditioner

Single-Zone Heating & Cooling Mini Split

Smart Inverter Technology

U-PRO Series - Up to 23 SEER2 - Heat Pump WiFi works with Alexa®

  • Energy Efficient Performance
    • Up to 21.7 SEER2
    • Up to 12.6 EER2
    • Up to 9.1 HSPF2
  • Ambient Operating Temperature
    • Heating (9K-24K): -13°F – 86°F / Heating (36K): -4°F – 86°F
    • Cooling (9K-24K): 5°F – 131°F / Cooling (36K): 5°F – 122°F

Klimaire Wall-mounted Ductless Mini-split Air Conditioner Heat Pump

U PRO is the newly designed 4th generation KLIMAIRE Heat pump Series consisting of a wall mounted indoor unit and Smart DC Inverter condenser with advanced comfort and energy saving features with ratings up to 23 SEER2. Factory Installed 6-in-1 healthy air filtration system delivers healthier indoor air quality.

Learn More




WIFI Connection





Installation




Smart Features & Modes

Switch between Auto, Cool, Heat, Dry, or Fan modes, set the temperature from 62°F to 86°F, and adjust fan speed or schedule with the Timer. Features like Swing, ECO, TURBO, Sleep, Clean, Follow Me, SHORTCUT, and LOCK make the system easy to use and customize.

Wi-Fi Smart Control Ready

With the KPIMDWF Wi-Fi Receiver Module, your KSIV system can be controlled anytime, anywhere using the NetHome Plus App — compatible with Alexa and Google Home for easy control of features and temperature.

All-Season Comfort

The outdoor unit delivers efficient performance in outdoor temperatures from 5°F to 122°F for cooling, and 5°F to 86°F for heating—ensuring year-round reliability in a variety of climates.

Exceptional Air Quality (IAQ)

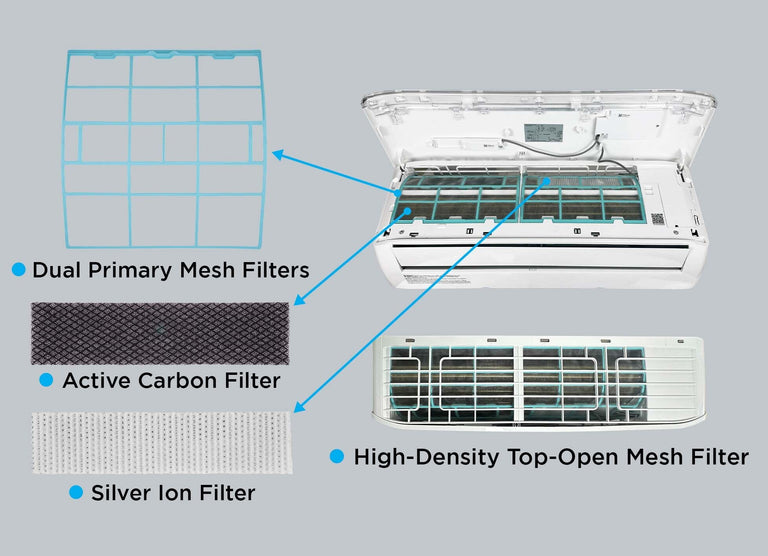

An advanced multi-stage filtration system combines a High-Density Top-Open Mesh Filter, Dual Washable Mesh Filters, a Silver Ion Filter, and an Active Carbon Filter to capture dust, neutralize bacteria, and remove odors — keeping your indoor air clean and fresh.

Advanced Golden Fin & Grille Protection

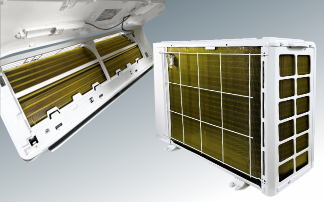

The Golden Fin coating defends coils against rust and corrosion, especially in humid or coastal environments, while the reinforced rear grille helps keep out leaves, dirt, and other debris—protecting key components and helping the system stay cleaner and last longer.

Smart Design for a Smoother Install

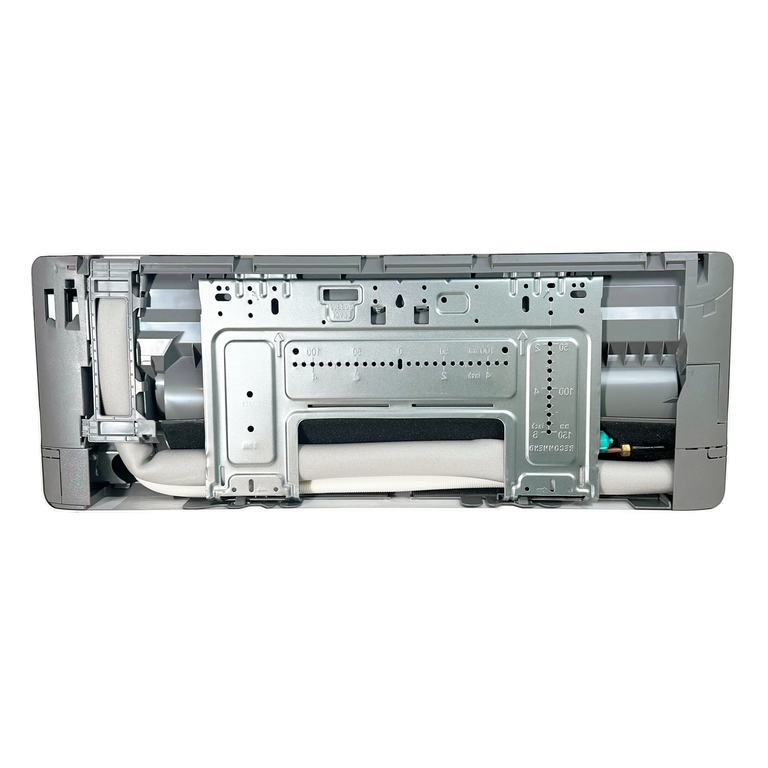

The mounting plate is designed for flexibility, allowing refrigerant piping to exit from the left, right, or rear. This makes it easier to fit the unit into different spaces while keeping the installation clean, fast, and hassle-free.

Self-Diagnosis & Refrigerant Leak Detection

The system monitors performance and displays error codes for issues like overheating, faults, or low refrigerant—helping diagnose problems quickly while safeguards prevent damage and ensure reliable operation.

7-Year Compressor & 5-Year Parts Warranty

Backed by a 7-year compressor and 5-year parts warranty upon registration. Long-term protection. Proven reliability.


Features

Convenience


Comfort


Performance


Reliability


Energy Saving


Wi-Fi Enabled (Built-In or Optional Controller)

Enables remote operation and monitoring of the system through a smart device when connected to a Wi-Fi network.

°C / °F Temperature Display Change

Allows switching between Celsius and Fahrenheit temperature display formats.

Horizontal Swing

Automatically moves the louvers left and right to evenly distribute air across the space.

Turbo Mode

Temporarily boosts system output to rapidly cool or heat the space.

Fan Mode

Circulates indoor air without heating or cooling for ventilation and air movement.

Self-Diagnosis

Monitors system operation and displays error codes to assist with troubleshooting and service.

Dry (Dehumidification) Mode

Reduces indoor humidity by removing excess moisture from the air while maintaining comfort.

Cold Mode

This symbol signifies that the air conditioner will cool the room by removing heat from the indoor air.

Sleep Mode

Automatically increases cooling or decreases heating by 1°C per hour for 2 hours, then holds steady for 5 hours before switching off, ensuring comfort and energy savings while you sleep.

What is Lorem Ipsum 17?

Lorem Ipsum is simply dummy text of the printing and typesetting industry.

What is Lorem Ipsum 18?

Lorem Ipsum is simply dummy text of the printing and typesetting industry.

What is Lorem Ipsum 19?

Lorem Ipsum is simply dummy text of the printing and typesetting industry.

Auto Restart

Automatically restores the unit to its previous operating mode and settings after a power interruption.

What is Lorem Ipsum 21?

Lorem Ipsum is simply dummy text of the printing and typesetting industry.

Louver Position Memory

Automatically returns the airflow louvers to their last position when the unit is powered back on.

Low Ambient Heating/Cooling

The unit can operate in cooling mode during the winter down to 5º F to cool an inner room.

What is Lorem Ipsum 24?

Heating mode works by reversing the refrigeration cycle, extracting heat from the outside air and transferring it indoors. To activate it, you'll typically look for a sun symbol on your remote or unit and set your desired temperature.

Seasonal Energy Efficiency Ratio

SEER stands for Seasonal Energy Efficiency Ratio, and it measures the annual energy consumption and efficiency of the unit’s cooling ability in typical day-to-day use. The higher the SEER value, the less energy the unit will use.

he Department of Energy (DOE) is changing the way HVAC systems are tested. New M1 testing procedures are thorough, demanding a lower SEER2 equipment rating and thus paving the way for a more sustainable future.

Heating Seasonal Performance Factor

HSPF quantifies the total heating output (measured in British Thermal Units or BTUs) produced by a heat pump during a typical heating season, divided by the total electricity consumed (measured in watt-hours). A newer, more accurate standard for measuring heat pump efficiency is HSPF2.

IAQ (Indoor air Quality)

Ensures the indoor unit improves air quality by removing contaminants, allergens, and odors, providing cleaner and healthier air inside the building.

What is Lorem Ipsum 28?

Lorem Ipsum is simply dummy text of the printing and typesetting industry.

ECO Mode

Reduces energy consumption by optimizing compressor and fan operation while maintaining comfort.

Product Documentation

KIWU-KOIU Series - Brochure
KIWU-KOIU Series - Technical Specifications
KIWU-KOIU Series - Installation Manual
KIWU-KOIU Series - Service Manual
KIWU-KOIU Series User's Manual
KIWU-KOIU Series - Remote Control
KIWU-KOIU Series - WIFI User's Manual

Available Capacity

Find the perfect Klimaire U-PRO® mini split — Powerful performance, and year-round comfort for your space.

  • Cooling Capacity
  • Energy Efficiency
  • External Static Pressure (ESP) Range
  • Heating Capacity
  • Outdoor Net / Gross Weight
  • Outdoor Operating Cooling / Heating Range
  • Power Supply
  • Refrigerant Precharge
  • Refrigerant Type
  • Sound Levels (Turbo / Hi / Mi / Lo / Si)
  • Liquid / Gas Size
Productvariantdrop

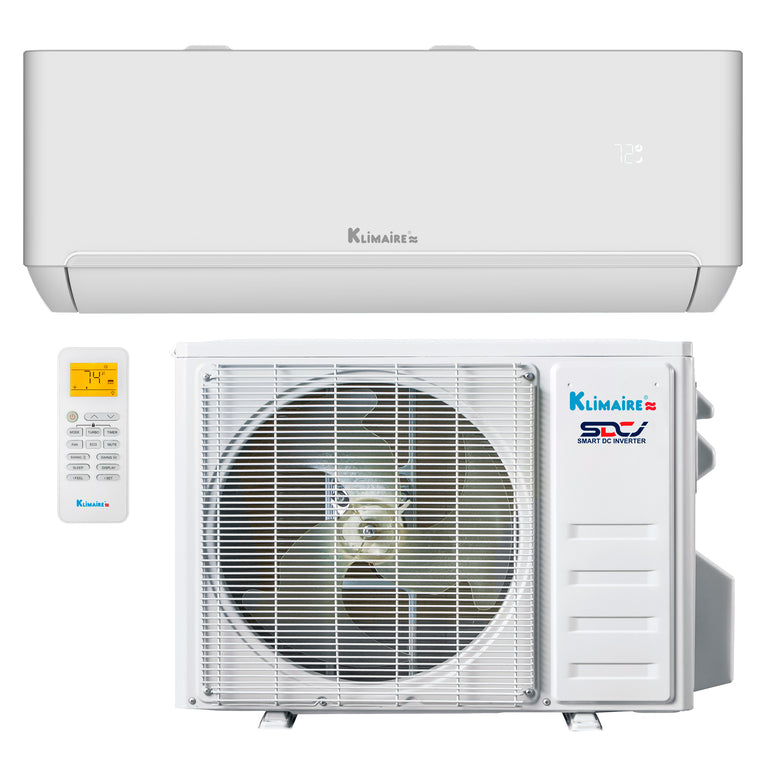

9,000 Btu 21.5 SEER2 115V Klimaire Wall-mounted Ductless Mini-split Inverter Air Conditioner Heat Pump System WiFi works with Alexa®
2nd Generation
Model Number: KIWU09H1-1T + KOIU09H1-1
9,000 BTU
21.5 SEER2 / 9 HSPF2 / 12.5 EER2 / 1.89 COP
550 psig
10,000 BTU
66.8 / 71.87 lbs
5～122/5～86
115 V / 1 Phase / 60 Hz
25 ft
R-410A
42/39/34/29/27 dB(A)
Productvariantdrop
18,000 Btu Klimaire 22 SEER2 220V Wall-mounted Ductless Mini-split Air Conditioner Heat Pump WiFi
Model Number: KIWU18H2-1T + KOIU18H2-1
18,000 BTU
22 SEER2 / 8.2 HSPF2 / 13 EER2 / 1.8 COP
18,000 BTU
31 / 85 lbs
79.8 / 85.76 lbs
5～122/5～86
208-230V / 1Ph / 60Hz
25 ft
R-410A
43 / 35 / 30.5 dB(A)
Productvariantdrop
24,000 Btu Klimaire 23 SEER2 230V Wall-mounted Ductless Mini-split Air Conditioner Heat Pump
Model Number: KIWU24H2-1T + KOIU24H2-1
24,000 BTU
550
24,000 BTU
1/4 5/8
31 / 105
51/48/43/38/35
Productvariantdrop
36,000 Btu Klimaire 19 SEER2 230V Wall-mounted Ductless Mini-split Air Conditioner Heat Pump
Model Number: KIWU36H2-1A + KOIU36H2-1
36,000 BTU
19 SEER2 / 7 HSPF2 / 9 EER2 / 1.7 COP
550
36,000 BTU
42 / 113
208-230V / 1Ph / 60Hz
25 ft
R-410A
56.5 / 54.5 / 40 dB(A)
Productvariantdrop
KIWU12H2-1 + 0KOIU12H2-112,000 Btu Klimaire 23 SEER2 230V Wall-mounted Ductless Mini-split Air Conditioner Heat Pump
Model Number: KIWU12H2-1 + 0KOIU12H2-1
12,000 BTU
45/39/34/29/27
