Klimaire KIWQ-KOIQ DIY Series — Do-It-Yourself High Wall-Mounted Mini Split Heat Pump Air Conditioner with E-Z Kuick Connect™ Installation Kit (5th Generation)

Single-Zone Heating & Cooling Mini Split

Do it Easy, Do it for Less & Do it Quick

KIWQ-KOIQ DIY
Series Do-It-Yourself Self-Install

  • Available Capacities
    • 9,000 BTU - 36,000 BTU
  • Energy Efficient Performance
    • Up to 24 SEER2
    • Up to 10 HSPF2
    • Up to 13 EERS
  • Quick & Easy DIY Installation

    No professional help needed!

  • Includes 25-Ft Pre-Charged E-Z Kuick Connect Kit

    For a hassle-free setup.

  • Ambient Operating Temperature
    • Heating (9K-24K): -13°F – 86°F / Heating (36K): -4°F – 86°F
    • Cooling (9K-24K): 5°F – 131°F / Cooling (36K): 5°F – 122°F

Klimaire DIY Ductless Mini-Split Air Conditioner
& Heat Pump with E-Z Kuick Connect™

Enjoy quick and easy home comfort with our pre-charged DIY ductless mini- split system.
The convenient E-Z Kuick Connect™ Kit makes installation simple, allowing you to set up your air conditioner and heat pump without professional tools or assistance. Save money, save time, and experience year-round comfort effortlessly with Klimaire’s self-install system.

True DIY Installation

Factory pre-charged EZ Kuick Connect line set with secure fittings, filled with R-454B refrigerant — no vacuuming, gauges, or refrigerant handling. Pre-attached 4-conductor communication cable with plug-in connectors. No field wiring. No HVAC technician required.

Install faster. Cleaner. Smarter.

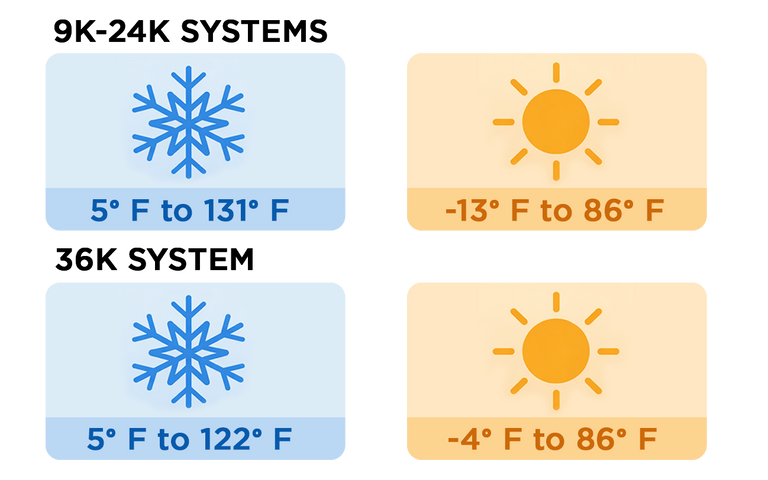

All-Season Performance

Delivers dependable performance across extreme outdoor temperatures. 9K–24K systems: 5°F to 131°F (cooling) | –13°F to 86°F (heating). 36K system: 5°F to 122°F (cooling) | –4°F to 86°F (heating). Engineered for consistent year-round operation in demanding climates.

Smart Airflow

Mode-based airflow automatically adjusts - ceiling-cascade cooling in cool mode and floor-rise warmth in heat mode — for balanced, whole-room comfort year-round.

Advanced Air Quality (IAQ)

3-in-1 multi-stage filtration captures dust, neutralizes bacteria, and reduces odors — delivering cleaner, fresher indoor air every day.

Built-In Wi-Fi Connectivity

Built-in Wi-Fi comes standard for direct control through the SmartLife–SmartHome App. Adjust temperature, modes, and schedules remotely — with voice control via Amazon Alexa and Google Home.

4-Way Airflow

Independent vertical and horizontal swing control directs airflow exactly where it’s needed for consistent, room-wide comfort.

I SET - One-Touch Comfort

Save your preferred temperature, mode, and fan settings with a single press. Instantly return to your personalized comfort profile.

I FEEL - Intelligent Comfort Sensing

The remote measures temperature at your location and automatically adjusts performance - delivering precise comfort where you are.

Ultra-Quiet Precision - As Low As 30 dB(A)

Engineered for whisper-level performance. Advanced DC inverter technology maintains consistent comfort with minimal sound.

Self-Diagnosis & Error Code Display

Built-in diagnostics automatically detect system irregularities and display error codes for quick troubleshooting — simplifying service and reducing downtime.

Factory Pre-Charged with R-454B

The outdoor unit comes factory pre-charged with next-generation R-454B refrigerant — delivering lower environmental impact and improved efficiency. Faster startup. Reliable performance right out of the box.

Advanced Blue & Golden Fin + Grille Protection

Blue-coated indoor fins enhance heat transfer and resist corrosion. Golden Fin outdoor coil and reinforced rear grille protect against moisture, debris, coastal air, and harsh weather. Built for long-term durability in demanding environments.


Included Accessories

Wireless Remote Control

Easily control your comfort with the included handheld wireless remote (with wall bracket), providing simple temperature control and convenient local operation.

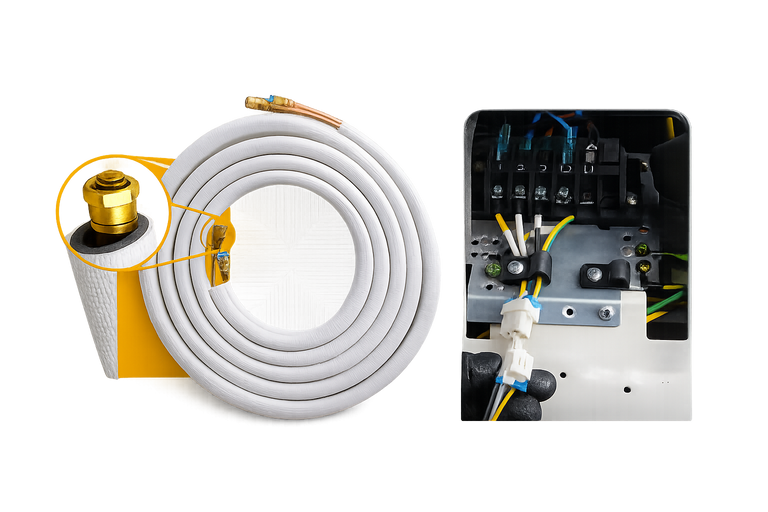

Pre-Charged Ez Kuick Connect Line Set

Factory pre-charged with R-454B refrigerant and equipped with sealed Quick Connect fittings for fast, secure installation — no vacuuming, gauges, or refrigerant handling required.

Pre-Attached Connecting Cable

Factory-attached 27.5 ft 4×16 AWG communication cable comes pre-wired to the indoor unit and features a secure plug-in connector for quick connection to the outdoor unit — no field wiring required.

Washable Front Mesh Air Filter Set

Includes two reusable front mesh filters to capture dust and particles from incoming air.

(2) 3-in-1 Multi-Stage Filters

Advanced 3-in-1 filtration featuring Tea Polyphenol, Anion + Vitamin C, and Photocatalyst + Active Carbon + Static-Free layers — designed to capture dust, neutralize odors, and enhance indoor air quality.

Optimized Wall Mounting Bracket

Engineered for accurate alignment and flexible piping routes, helping simplify installation and ensure a secure wall fit.

Drain Hose with Drain Joint & Seal

Includes a flexible drain hose with drain joint and rubber seal for a secure, leak-resistant condensate connection. Designed for proper drainage and reliable installation.

Complete Installation Finishing Kit

Includes wall sleeve, (2) wall caps, (2) clay mastic seal packs, (2) decorative wrap tapes, and pipe insulation. Designed to seal and protect wall penetrations while delivering a clean, weather-tight, professional finish.

Anti-Vibration Pad Set (4-Pack)

Set of four heavy-duty rubber pads that reduce vibration and noise while stabilizing the outdoor unit. Protects mounting surfaces and helps keep the system securely in place.

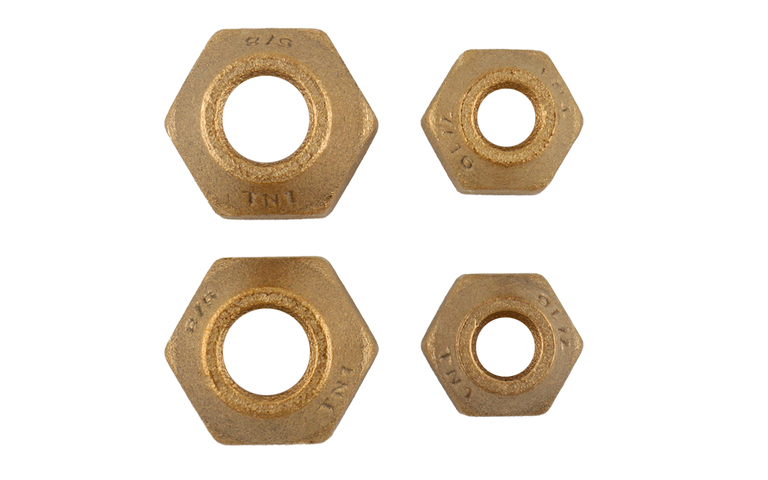

Brass Flare Nuts

Professional-grade flare nuts are included to provide added installation flexibility and long-term service support. In the rare event a line requires modification or replacement, these components allow a licensed HVAC technician to service the system without delay.

Built for DIY convenience — backed by professional compatibility.

Product Documentation

KIWP-KIWQ-KIWR-KIWE - Remote Control Manual
KIWQ-KOIQ - User & Installation Manual
KIWQ-KOIQ DIY Series - Wi-fi Manual

Enhance Your Setup
with Optional Accessories

Improve installation, protection, and system appearance with accessories designed to complement your Klimaire mini split system.

Essential Accessory:

  • Air Flow Volume (Turbo/Hi/Mi/Lo/Si)
  • connecting wiring
  • Cooling Capacity (Total / Min–Max)
  • Energy Efficiency
  • Heating Capacity (Total / Min–Max)
  • Indoor Sound Level (Turbo/High/Med/Low/Mute)
  • Liquid / Gas Size
  • maximum line length
  • max fuse
  • max height difference between ft indoor and outdoor
  • Minimum Circuit Ampacity (MCA)
  • Indoor Net / Gross Weight
  • Outdoor Net / Gross Weight
  • Outdoor Operating Cooling / Heating Range
  • outdoor sound pressure level
  • Power Supply
  • Refrigerant Precharge
  • Refrigerant Type
  • room temperature cooling heating
  • Unit Dimensions (W × D × H) Indoor / Outdoor
  • Zone Capacity
Productvariantdrop
9,000 BTU KIWQ-KOIQ DIY Series — Do-It-Yourself High Wall-Mounted Ductless Mini Split Heat Pump Air Conditioner with E-Z Kuick Connect™ Installation Kit
5th Generation
Model Number: KIWQ09H1-45T + KOIQ09H1-45T
326 / 282 / 235 / 188 / 153 CFM
4×16AWG
9,000 BTU (2,400 - 11,000 BTU)
24 SEER2 / 10 HSPF2 / 13 EER2
10,000 BTU (2,400 - 11,000 BTU)
43 / 40 / 33 / 31 / 30 dB(A)
1/4'' x 3/8''
49 ft
20 A
33 ft
15 A
20.7 / 25.1 lbs
53.6 / 64.6 lbs
5-131 / -13-86
50 dB(A)
110-115V/ 1 Ph / 60Hz
25 ft
R454B
62℉-89℉ / 32℉-86℉
32.28 × 12.05 × 7.68 in / 31.89 × 12.01 × 21.61 in
Single Zone System - Up to 450 sq.ft.
Productvariantdrop

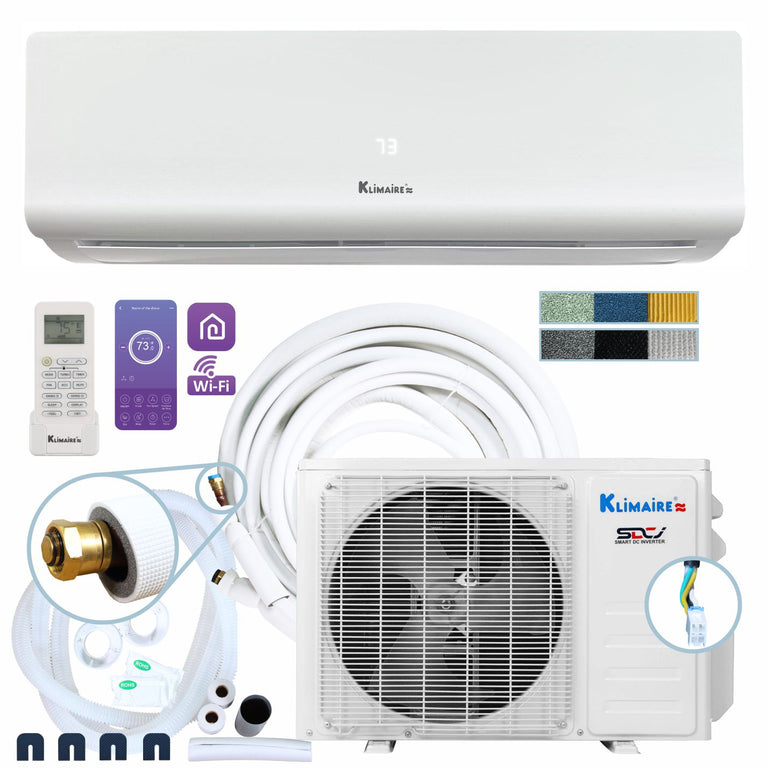

12,000 BTU KIWQ-KOIQ DIY Series — Do-It-Yourself High Wall-Mounted Ductless Mini Split Heat Pump Air Conditioner with E-Z Kuick Connect™ Installation Kit
5th Generation
Model Number: KIWQ012H1-45T + KOIQ12H1-45T
500 / 470 / 411 / 323 / 205 CFM
4×16AWG
12,000 BTU (2,500 - 12,500 BTU)
23 SEER2 / 10 HSPF2 / 13 EER2
12,400 BTU (2,500 - 15,000 BTU)
46 / 44 / 36 / 32 / 30 dB(A)
1/4'' x 3/8''
49 ft
25 A
33 ft
16 A
23.1 / 30.9 lbs
58.4 / 69.4 lbs
5-131 / -13-86
52 dB(A)
110-115V/ 1 Ph / 60Hz
25 ft
R454B
62℉-89℉ / 32℉-86℉
32.28 × 12.05 × 7.68 in / 31.89 × 12.01 × 21.61 in
Single Zone System - Up to 550 sq. ft.
Productvariantdrop
12,000 BTU KIWQ-KOIQ DIY Series — Do-It-Yourself High Wall-Mounted Ductless Mini Split Heat Pump Air Conditioner with E-Z Kuick Connect™ Installation Kit
5th Generation
Model Number: KIWQ12H2-45T + KOIQ12H2-45T
500 / 470 / 411 / 323 / 205 CFM
4×16AWG
12,000 BTU (2,500 - 12,500 BTU)
24 SEER2 / 10 HSPF2 / 13 EER2
12,600 BTU (2,500 - 15,000 BTU)
46 / 44 / 36 / 32 / 30 dB(A)
1/4'' x 3/8''
49 ft
15 A
33 ft
11 A
23.1 / 30.9 lbs
58.4 / 69.4 lbs
5-131 / -13-86
52 dB(A)
208-230V/ 1 Ph / 60Hz
25 ft
R454B
62℉-89℉ / 32℉-86℉
32.28 × 12.05 × 7.68 in / 31.89 × 12.01 × 21.61 in
Single Zone System - Up to 550 sq. ft.
Productvariantdrop
18,000 BTU KIWQ-KOIQ DIY Series — Do-It-Yourself High Wall-Mounted Ductless Mini Split Heat Pump Air Conditioner with E-Z Kuick Connect™ Installation Kit
5th Generation
Model Number: KIWQ18H2-45T + KOIQ18H2-45T
735 / 676 / 529 / 423 / 394 CFM
4×16AWG
18,000 BTU (4,000 - 19,000 BTU)
23 SEER2 / 9.5 HSPF2 / 12.5 EER2
19,000 BTU (4,000 - 21,000 BTU )
50 / 47 / 43 / 38 / 34 dB(A)
1/4'' x 3/8''
65 ft
20 A
49 ft
12 A
30.9 / 35.3 lbs
90.4 / 105.8 lbs
5-131 / -13-86
53 dB(A)
208-230V/ 1 Ph / 60Hz
25 ft
R454B
62℉-89℉ / 32℉-86℉
43.19 × 13.07 ×8.74 in / 36.5 × 14.96 × 27.52 in
Single Zone System - Up to 1,000 sq. ft.
Productvariantdrop
24,000 BTU KIWQ-KOIQ DIY Series — Do-It-Yourself High Wall-Mounted Ductless Mini Split Heat Pump Air Conditioner with E-Z Kuick Connect™ Installation Kit
5th Generation
Model Number: KIWQ24H2-45T + KOIQ24H2-45T
735 / 676 / 529 / 423 / 394 CFM
4×16AWG
23,000 BTU(4,700 - 25,000 BTU)
23 SEER2 / 9.5 HSPF2 / 12 EER2
25,000 BTU (4,700 - 26,500 BTU)
50 / 47 / 43 / 38 / 34 dB(A)
1/4'' x 1/2''
65 ft
25 A
49 ft
17 A
30.9 / 35.3 lbs
104.7 / 119.0 lbs
5-131 / -13-86
54 dB(A)
208-230V/ 1 Ph / 60Hz
25 ft
R454B
62℉-89℉ / 32℉-86℉
43.19 × 13.07 × 8.74 in / 38.5 × 16.57 × 31.61 in
Single Zone System - Up to 1,500 sq. ft.
Productvariantdrop

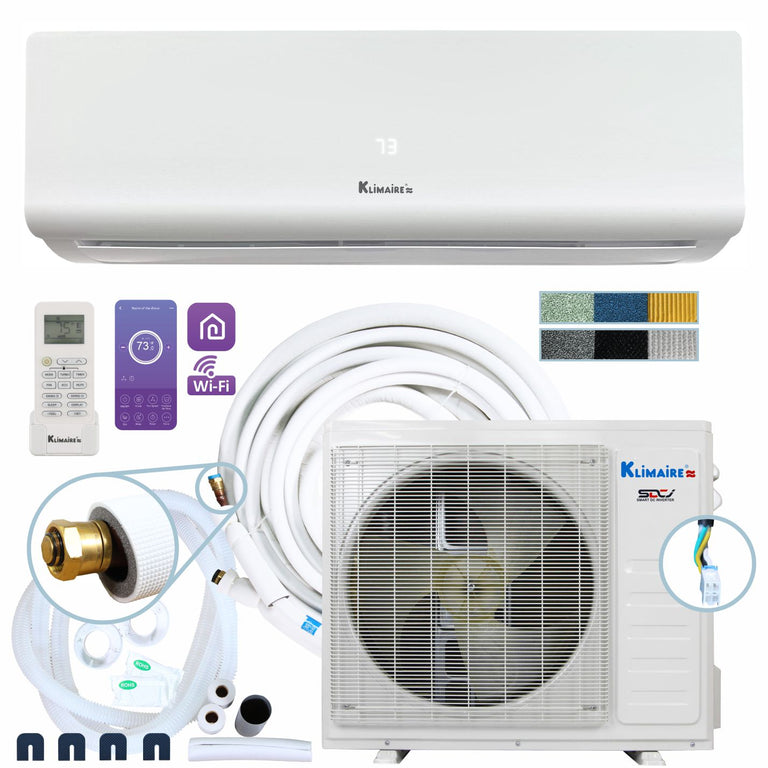

36,000 BTU KIWQ-KOIQ DIY Series — Do-It-Yourself High Wall-Mounted Ductless Mini Split Heat Pump Air Conditioner with E-Z Kuick Connect™ Installation Kit
5th Generation
Model Number: KIWQ36H2-45T + KOIQ36H2-45T
847 / 705 / 588 / 470 / 412 CFM
4×16AWG
36,000 BTU (7,500 - 36,000 BTU)
19 SEER2 / 9.0 HSPF2 / 9.0 EER2
36,000 BTU (7,500 - 36,000 BTU)
52 / 49 / 43 / 38 / 36 dB(A)
1/4'' x 5/8''
98 ft
30 A
65 ft
18 A
39.7 /48.5 lbs
105.8 / 120.2 lbs
5-122 / -4-86
63 dB(A)
208-230V/ 1 Ph / 60Hz
25 ft
R454B
>=62℉ / <=86℉
46.89 × 14.17 × 10.16 in / 38.5 × 16.57 × 31.61 in
Single Zone System - Up to 2,500 sq. ft.
