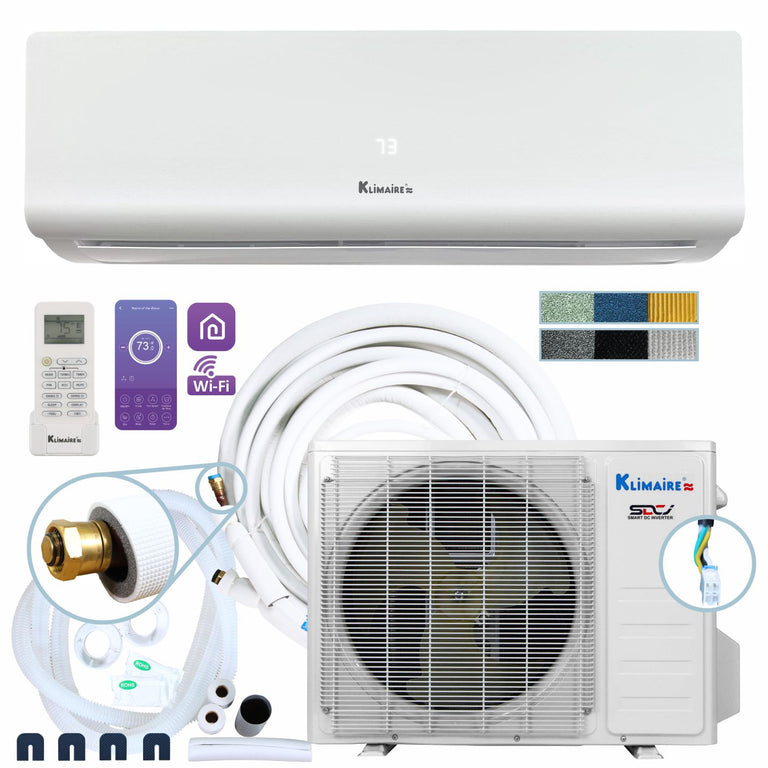

Klimaire KIWQ-KOIQ DIY Series — Do-It-Yourself High Wall-Mounted Mini Split Heat Pump Air Conditioner with E-Z Kuick Connect™ Installation Kit (4th Generation)

Single-Zone Heating & Cooling Mini Split

Do it Easy, Do it for Less & Do it Quick

KIWQ-KOIQ DIY
Series Do-It-Yourself Self-Install

  • Available Capacities
    • 9,000 BTU - 24,000 BTU
  • Energy Efficient Performance
    • Up to 21.7 SEER2
    • Up to 12.6 EER2
    • Up to 9.1 HSPF2
  • Quick & Easy DIY Installation

    No professional help needed!

  • Includes 25-Ft Pre-Charged E-Z Kuick Connect Kit

    For a hassle-free setup.

  • Ambient Operating Temperature
    • Heating (9K-24K): -13°F – 86°F / Heating (36K): -4°F – 86°F
    • Cooling (9K-24K): 5°F – 131°F / Cooling (36K): 5°F – 122°F
  • Available Models

    KUIR18-H2-4
    KUIR24-H2-4

Klimaire DIY Ductless Mini-Split Air Conditioner
& Heat Pump with E-Z Kuick Connect™

Enjoy quick and easy home comfort with our pre-charged DIY ductless mini- split system.
The convenient E-Z Kuick Connect™ Kit makes installation simple, allowing you to set up your air conditioner and heat pump without professional tools or assistance. Save money, save time, and experience year-round comfort effortlessly with Klimaire’s self-install system.

Wi-Fi Smart Control Ready

With the KPIMDWF Wi-Fi Receiver Module, your KSIV system can be controlled anytime, anywhere using the NetHome Plus App — compatible with Alexa and Google Home for easy control of features and temperature.

Follow Me Function

This initiates the Follow Me feature, the remote displays the actual temperature at its location. The remote control will send this signal to the air conditioner every 3 minutes until you press the Follow Me button again.

ON/OFF 24 hr. Programmable Timer

Timer can be set ON / OFF easily 24 hours in haf hour increments using the wireless remote control.

Self-Cleaning

Built-in feature will prevent growth of harmful microorganisms by cleaning the evaporator of the indoor unit where accumulation of dust and bacteria could be a major issue. This function keeps the unit fresh and clean for the next operation.


Features

Convenience


Energy Saving


Reliability


Comfort


Performance


Wi-Fi Enabled (Built-In or Optional Controller)

Enables remote operation and monitoring of the system through a smart device when connected to a Wi-Fi network.

IAQ (Indoor air Quality)

Ensures the indoor unit improves air quality by removing contaminants, allergens, and odors, providing cleaner and healthier air inside the building.

Seasonal Energy Efficiency Ratio

SEER stands for Seasonal Energy Efficiency Ratio, and it measures the annual energy consumption and efficiency of the unit’s cooling ability in typical day-to-day use. The higher the SEER value, the less energy the unit will use.

he Department of Energy (DOE) is changing the way HVAC systems are tested. New M1 testing procedures are thorough, demanding a lower SEER2 equipment rating and thus paving the way for a more sustainable future.

Heating Seasonal Performance Factor

HSPF quantifies the total heating output (measured in British Thermal Units or BTUs) produced by a heat pump during a typical heating season, divided by the total electricity consumed (measured in watt-hours). A newer, more accurate standard for measuring heat pump efficiency is HSPF2.

Louver Position Memory

Automatically returns the airflow louvers to their last position when the unit is powered back on.

Auto Restart

Automatically restores the unit to its previous operating mode and settings after a power interruption.

Sleep Mode

Automatically increases cooling or decreases heating by 1°C per hour for 2 hours, then holds steady for 5 hours before switching off, ensuring comfort and energy savings while you sleep.

Cold Mode

This symbol signifies that the air conditioner will cool the room by removing heat from the indoor air.

Dry (Dehumidification) Mode

Reduces indoor humidity by removing excess moisture from the air while maintaining comfort.

Fan Mode

Circulates indoor air without heating or cooling for ventilation and air movement.

Turbo Mode

Temporarily boosts system output to rapidly cool or heat the space.

Horizontal Swing

Automatically moves the louvers left and right to evenly distribute air across the space.

°C / °F Temperature Display Change

Allows switching between Celsius and Fahrenheit temperature display formats.

Product Documentation

KIWQ-KOIQ Series - Brochure
KIWQ-KOIQ Series - Technical Specifications
KIWQ-KOIQ Series - WIFI User's Manual
KIWQ-KOIQ Series - Service Manual
KIWQ-KOIQ Series - Installation Manual
  • Cooling Capacity
  • Energy Efficiency
  • Heating Capacity
  • Indoor Net / Gross Weight
  • Outdoor Net / Gross Weight
  • Power Supply
  • Refrigerant Precharge
  • Sound Levels (KOIQ)
  • Unit Dimensions (W × D × H)
Productvariantdrop
12,000 BTU Klimaire KIWQ-KOIQ DIY Series — Do-It-Yourself High Wall-Mounted Mini Split Heat Pump Air Conditioner with E-Z Kuick Connect™ Installation Kit - 115V
4th Generation
Model Number: KOIQ12H1-4 + KIWQ12H1-4T + IKT1438Q25
12,000 BTU
19.0 SEER2 / 8.5 HSPF2 / 10.0 EER2
12,000 (BTU/h) BTU/h
19.8 / 24.2 lbs
63.9/70.5 lbs
115/1/60
25 ft
42/39/34/29/27
31.92x11.49x8.07
As low as
$1,189.00
Productvariantdrop
12,000 BTU Klimaire KIWQ-KOIQ DIY Series — Do-It-Yourself High Wall-Mounted Mini Split Heat Pump Air Conditioner with E-Z Kuick Connect™ Installation Kit - 208-230V
4th Generation
Model Number: KOIQ12H2-4 + KIWQ12H2-4T + IKT1438Q25
12,000 BTU
19.0 SEER2 / 8.5 HSPF2 / 10.0 EER2
12,000 (BTU/h) BTU/h
19.8 / 24.2 lbs
59.5 / 68.3 lbs
208-230V/1/60
25 ft
42/39/34/29/27
31.92x11.49x8.07
As low as
$1,089.00
Productvariantdrop
18,000 BTU Klimaire KIWQ-KOIQ DIY Series — Do-It-Yourself High Wall-Mounted Mini Split Heat Pump Air Conditioner with E-Z Kuick Connect™ Installation Kit - 208-230V
4th Generation
Model Number: KOIQ18H2-4 + KIWQ18H2-4T + IKT1438Q25
18,000 BTU
19.0 SEER2 / 8.5 HSPF2 / 9.4 EER2
18,000 BTU
28.7/35.3
73.8 / 81.5 lbs
208-230V/1/60
25 ft
50/48/43/38/32
39.76x12.40x8.66
As low as
$1,469.00
Productvariantdrop
24,000 BTU Klimaire KIWQ-KOIQ DIY Series — Do-It-Yourself High Wall-Mounted Mini Split Heat Pump Air Conditioner with E-Z Kuick Connect™ Installation Kit - 208-230V
4th Generation
Model Number: KOIQ24H2-4 + KIWQ24H2-4T + IKT1412Q25
24,000 BTU
19.0 SEER2 / 8.5 HSPF2 / 10.0 EER2
24,000 BTU
37.5/46.3
99.2 / 110.2 lbs
208-230V/1/60
25 ft
51/48/43/38/35
46.93x14.17x10.23
As low as
$1,684.00
Productvariantdrop
36,000 BTU Klimaire KIWQ-KOIQ DIY Series — Do-It-Yourself High Wall-Mounted Mini Split Heat Pump Air Conditioner with E-Z Kuick Connect™ Installation Kit - 208-230V
4th Generation
Model Number: KOIQ36H2-4 + KIWQ36H2-4T + IKT1458Q25
36,000 BTU
19.0 SEER2 / 8.5 HSPF2 / 9.0 EER2
36,000 BTU
38.6 / 47.4 lbs
136.7 / 152.1 lbs
208-230V/1/60
25 ft
51/48/43/38/35
46.93x14.17x10.23
As low as
$2,356.00
