Klimaire KIWE-KOIE Series – High Wall-Mounted Mini Split Heat Pump Air Conditioner - R-32

KIWE-KOIE Series – Wall-Mounted Heat Pump System

  • Available Capacities
    • 12,000 BTU - 36,000 BTU
  • High-Efficiency Performance
    • 17 SEER2 • Up to 9.5 HSPF2 • 9.5 EER2
  • Wireless Remote Control + Built-In Wi-Fi Smart Control

    Compatible with Alexa® and Google Home®

  • Ultra-Quiet Operation

    Indoor sound levels as low as 29 dB(A).
    Outdoor unit as low as 53 dB(A).

  • R-32 Eco-Friendly Refrigerant

    Lower-GWP refrigerant with improved thermal efficiency.

  • Factory Pre-Charged (Up to 25 ft Line Set)

    Pre-charged for faster installation and reliable startup.

  • 7-Year Compressor / 5-Year Parts Warranty

    Manufacturer-backed protection.

The Klimaire KIWE-KOIE Series High Wall-Mounted Mini Split Heat Pump delivers reliable, energy-efficient comfort year-round with 17 SEER2 inverter technology, ultra-quiet performance, and built-in Wi-Fi control for easy temperature adjustments from the included remote or your smartphone. Available in 12,000 to 36,000 BTU capacities, the 12,000 BTU model is offered in both 115V and 208/230V configurations, while larger capacities operate on 208/230V power to match your home’s electrical setup. Engineered with eco-friendly R-32 refrigerant and designed for dependable heating and cooling in all seasons, this system provides smart comfort you can trust.

All-Season Performance

Delivers dependable performance across extreme outdoor temperatures. 53.6°F to 122°F (cooling) | –5°F to 86°F (heating). Engineered for consistent year-round operation in demanding climates.

Built-In Wi-Fi Connectivity

Built-in Wi-Fi comes standard for direct control through the SmartLife–SmartHome App. Adjust temperature, modes, and schedules remotely — with voice control via Amazon Alexa and Google Home.

Advanced Air Quality (IAQ)

3-in-1 multi-stage filtration captures dust, neutralizes bacteria, and reduces odors — delivering cleaner, fresher indoor air every day.

I FEEL - Intelligent Comfort Sensing

The remote measures temperature at your location and automatically adjusts performance - delivering precise comfort where you are.

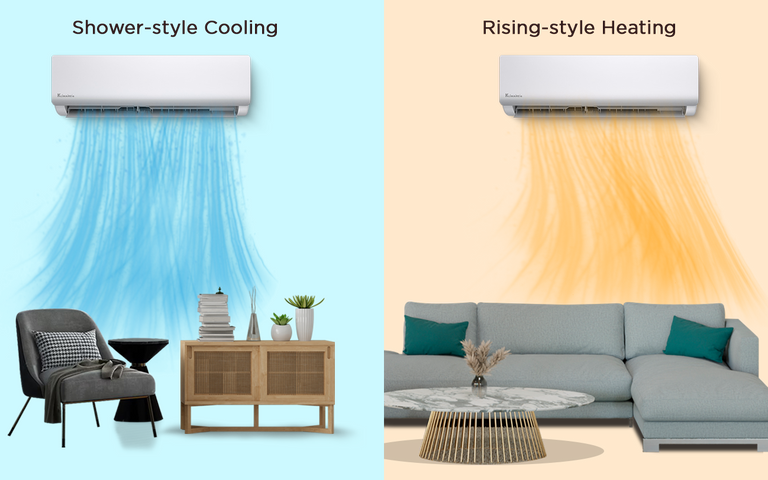

Smart Airflow

Mode-based airflow automatically adjusts - ceiling-cascade cooling in cool mode and floor-rise warmth in heat mode — for balanced, whole-room comfort year-round.

4-Way Airflow

Independent vertical and horizontal swing control directs airflow exactly where it’s needed for consistent, room-wide comfort.

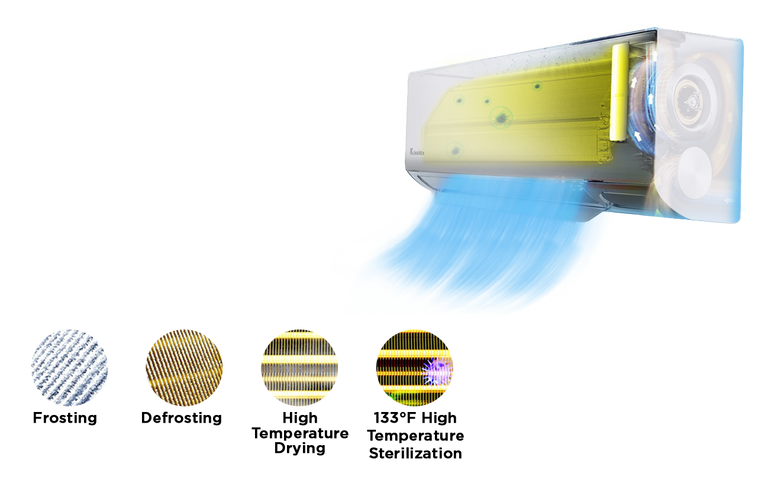

133°F High-Temperature Self-Cleaning System

4-Step Auto Clean Cycle: Frosting, Defrosting, High-Temperature Drying, and 133°F Thermal Sterilization - helping reduce moisture buildup and inhibit microbial growth for cleaner airflow and long-term performance.

I SET - One-Touch Comfort

Save your preferred temperature, mode, and fan settings with a single press. Instantly return to your personalized comfort profile.

Ultra-Quiet Precision - As Low As 29 dB(A)

Engineered for whisper-level performance. Advanced DC inverter technology maintains consistent comfort with minimal sound.

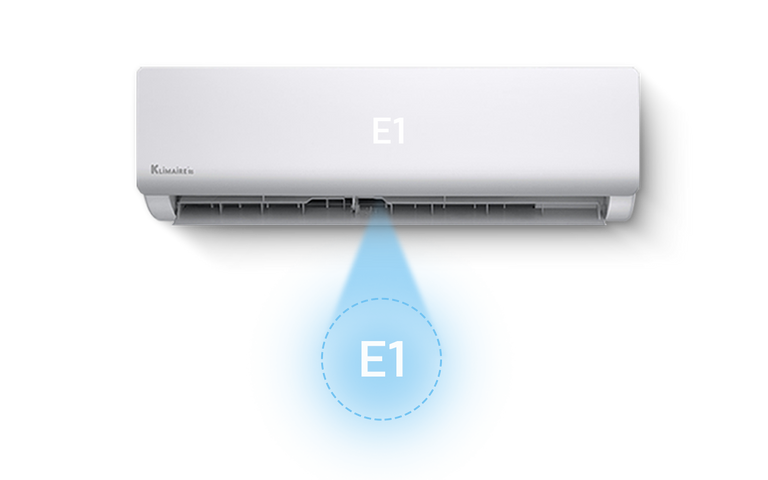

Self-Diagnosis & Error Code Display

Built-in diagnostics automatically detect system irregularities and display error codes for quick troubleshooting — simplifying service and reducing downtime.

Factory Pre-Charged with R-32

The outdoor unit comes factory pre-charged with next-generation R-32refrigerant to support up to 25 Ft of Line Set — delivering lower environmental impact and improved efficiency. Faster startup. Reliable performance right out of the box

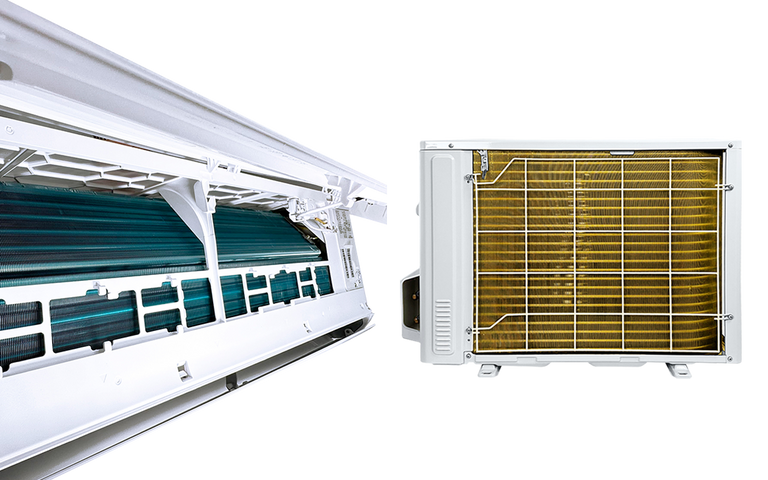

Advanced Blue & Golden Fin + Grille Protection

Blue-coated indoor fins enhance heat transfer and resist corrosion. Golden Fin outdoor coil and reinforced rear grille protect against moisture, debris, coastal air, and harsh weather. Built for long-term durability in demanding environments.


Included Accessories

Essential accessories included to support installation and everyday operation.

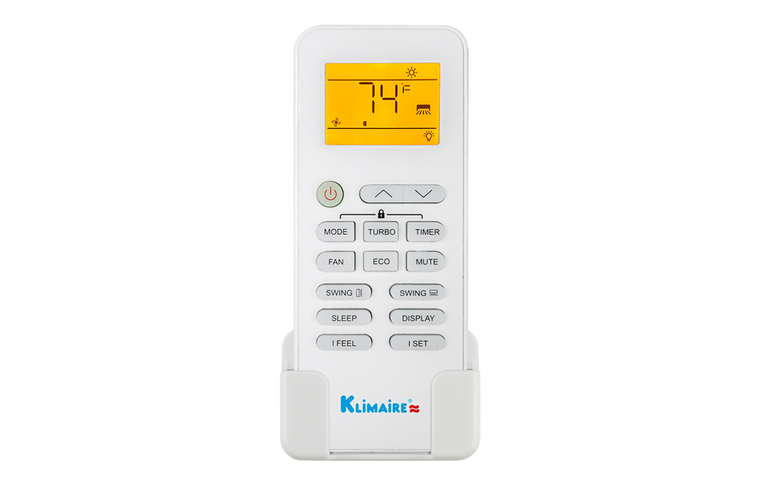

Wireless Remote Control

Easily control your comfort with the included handheld wireless remote (with wall bracket), providing simple temperature control and convenient local operation.

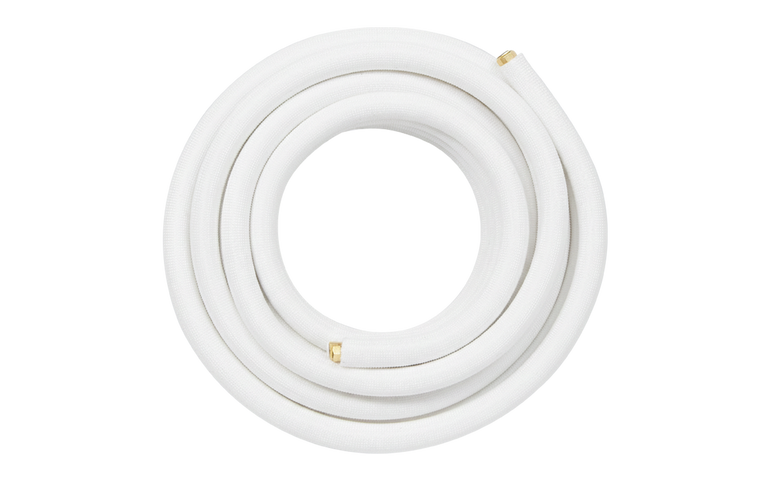

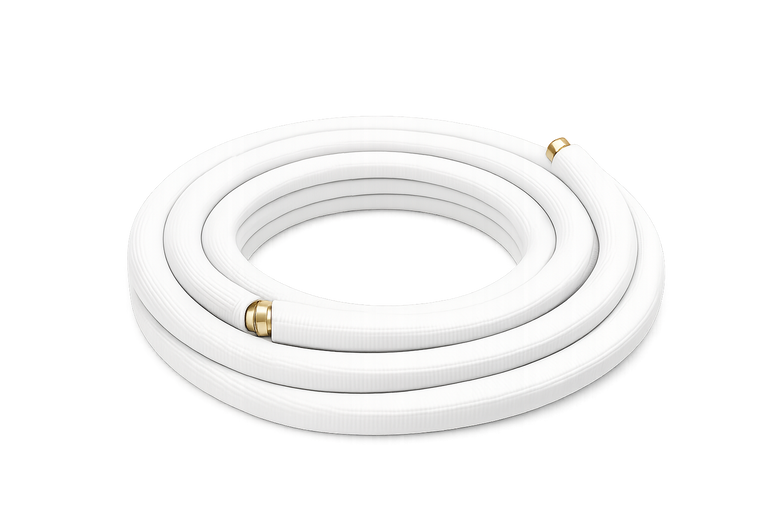

16-ft Flared & Insulated Copper Line Set with Pre-Installed Brass Flare Nuts

Includes premium insulated copper tubing with factory-flared ends and heavy-duty brass flare nuts for a secure, leak-resistant connection. Built for reliable performance, standard HVAC compatibility, and long-term durability.

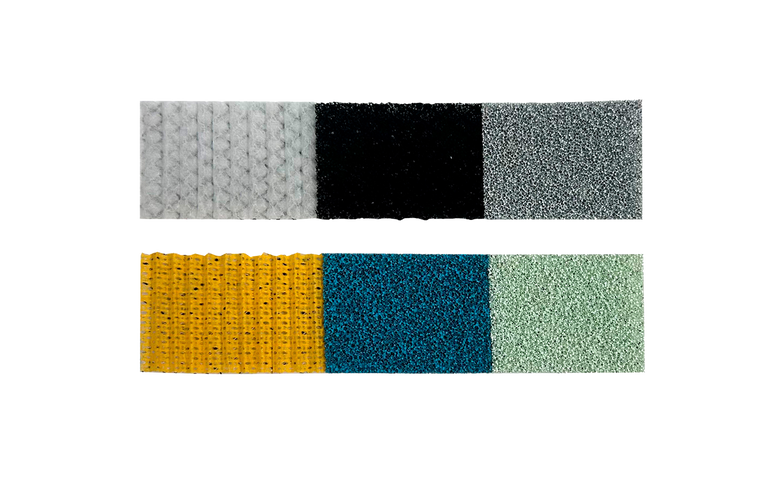

(2) 3-in-1 Multi-Stage Filters

Advanced 3-in-1 filtration featuring Tea Polyphenol, Anion + Vitamin C, and Photocatalyst + Active Carbon + Static-Free layers — designed to capture dust, neutralize odors, and enhance indoor air quality.

18 ft Communication Cable

16 AWG × 4 conductors Stranded, unshielded inter-connection cable designed to connect the indoor and outdoor units. Ensures reliable communication and proper system operation.

Optimized Wall Mounting Bracket

Engineered for accurate alignment and flexible piping routes, helping simplify installation and ensure a secure wall fit.

Drain Hose with Drain Joint & Seal

Includes a flexible drain hose with drain joint and rubber seal for a secure, leak-resistant condensate connection. Designed for proper drainage and reliable installation.

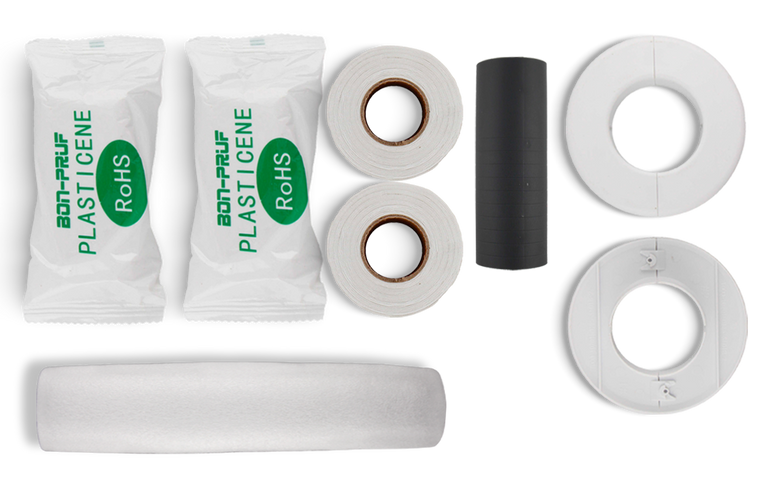

Complete Installation Finishing Kit

Includes wall sleeve, (2) wall caps, (2) clay mastic seal packs, (2) decorative wrap tapes, and pipe insulation. Designed to seal and protect wall penetrations while delivering a clean, weather-tight, professional finish.

Anti-Vibration Pad Set (4-Pack)

Set of four heavy-duty rubber pads that reduce vibration and noise while stabilizing the outdoor unit. Protects mounting surfaces and helps keep the system securely in place.

Product Documentation

KIWE-KOIE - Series User & Installation Manual
KIWP-KIWQ-KIWR-KIWE - Remote Control Manual
KIWE-KOIE Series - Wi-fi Manual
KIWE-KOIE Series Brochure

Enhance Your Setup
with Optional Accessories

Improve installation, protection, and system appearance with accessories designed to complement your Klimaire mini split system.

Essential Accessory:

  • Air Flow Volume (Turbo/Hi/Mi/Lo/Si)
  • connecting wiring
  • Cooling Capacity (Total / Min–Max)
  • design pressure
  • Energy Efficiency
  • Heating Capacity (Total / Min–Max)
  • Indoor Sound Level (Turbo/High/Med/Low/Mute)
  • Liquid / Gas Size
  • maximum line length
  • max fuse
  • max height difference between ft indoor and outdoor
  • Minimum Circuit Ampacity (MCA)
  • Indoor Net / Gross Weight
  • Outdoor Net / Gross Weight
  • Outdoor Operating Cooling / Heating Range
  • outdoor sound pressure level
  • Power Supply
  • Refrigerant Precharge
  • Refrigerant Type
  • room temperature cooling heating
  • Unit Dimensions (W × D × H) Indoor / Outdoor
  • Zone Capacity
Productvariantdrop

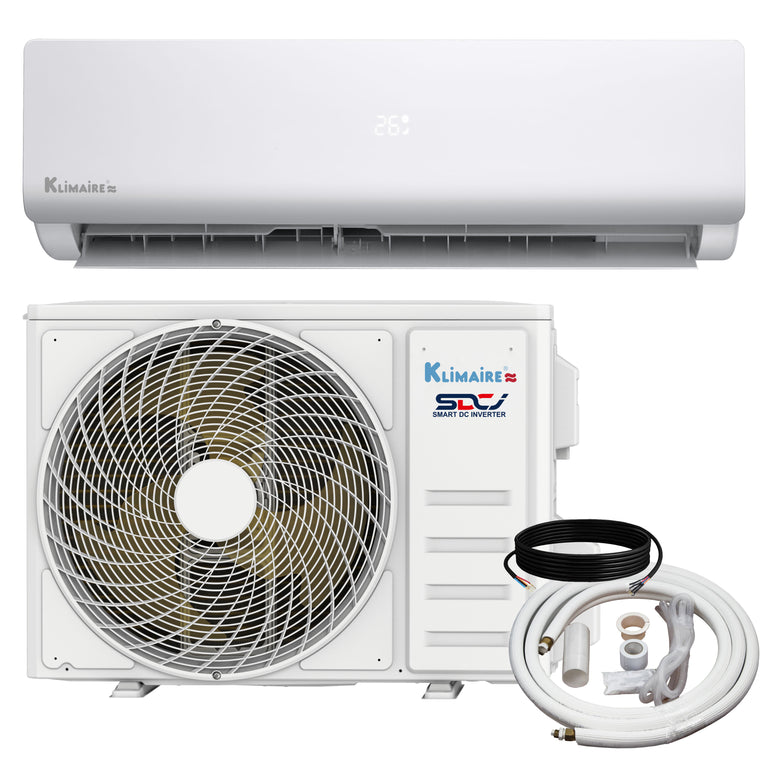

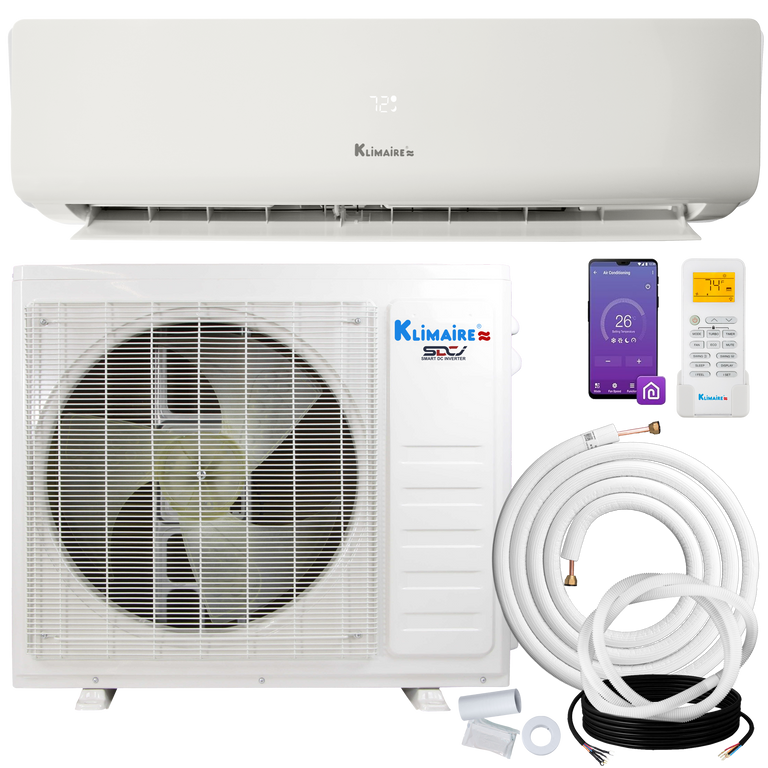

12,000 BTU KIWE-KOIE Series 17 SEER2 – High Wall-Mounted Heat Pump Mini Split Air Conditioner - R-32 / 110-115V
3rd Generation
Model Number: KIWE12H1-31X + KOIE12H1-31X
276 / 265 / 241 / 224 / 206 CFM
4×16AWG
11,500 BTU (2,050 - 12,000 BTU)
725 PSIG
17 SEER2 / 9.5 HSPF2 / 9.5 EER2
11,500 BTU (2,050 - 12,500 BTU)
43 / 40 / 36 / 33 / 29 dB(A)
1/4" x 3/8"
49 ft
25 A
33 ft
17 A
16.5 / 20.94 lbs
46.3 / 52.9 lbs
5°F – 86°F / 53.6°F – 122°F
53 dB(A)
110-115V/ 1 Ph / 60 Hz
25 ft
R-32
>=62°F / <=86°F
30.59 × 9.84 × 7.91 in / 30.98 × 11.42 ×19.61 in
Single Zone System - Up to 550 sq. ft.
Productvariantdrop
12,000 BTU KIWE-KOIE Series 17 SEER2 – High Wall-Mounted Heat Pump Mini Split Air Conditioner - R-32 / 208-230V
3rd Generation
Model Number: KIWE12H2-31X + KOIE12H2-31X
294 / 264 / 235 / 206 / 159 CFM
4×16AWG
11,500 BTU (2,050 - 12,000 BTU)
725 PSIG
17 SEER2 / 8.5 HSPF2 / 9.5 EER2
11,500 BTU (2,050 - 12,500 BTU)
45 / 42 / 39 / 35 / 33 dB(A)
1/4" x 3/8"
49 ft
15 A
33 ft
11 A
16.5 / 20.94 lbs
46.3 / 52.9 lbs
5°F – 86°F / 53.6°F – 122°F
55 dB(A)
208-230V/ 1 Ph / 60 Hz
25 ft
R-32
>=62°F / <=86°F
30.59 × 9.84 × 7.91 in / 30.98 × 11.42 ×19.61 in
Single Zone System - Up to 550 sq. ft.
Productvariantdrop

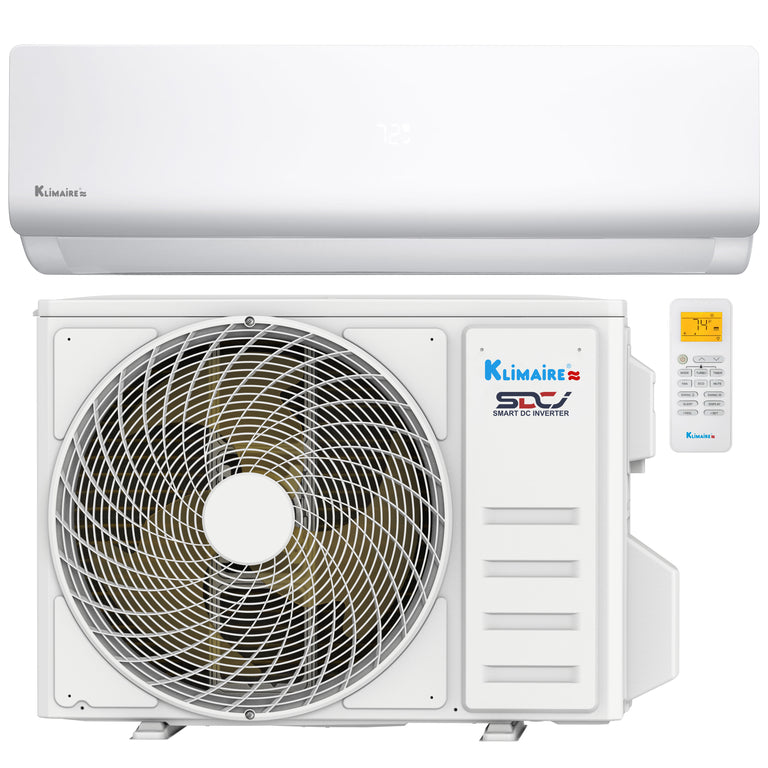

18,000 BTU KIWE-KOIE Series 17 SEER2 – High Wall-Mounted Heat Pump Mini Split Air Conditioner - R-32 / 208-230V
3rd Generation
Model Number: KIWE18H2-31X + KOIE18H2-31X
412 / 364 / 294 / 235 / 208 CFM
4×16AWG
17,000 BTU (4,095 - 17,700 BTU)
725 PSIG
17 SEER2 / 8.5 HSPF2 / 9.5 EER2
16,500 BTU (4,095 - 17,700 BTU)
49 / 45 / 40 / 34 / 32 dB(A)
1/4" x 3/8"
49 ft
20 A
33 ft
12 A
20.9 / 27.56 lbs
52.9 / 60.63 lbs
5°F – 86°F / 53.6°F – 122°F
57 dB(A)
208-230V/ 1 Ph / 60 Hz
25 ft
R-32
>=62°F / <=86°F
35.83 × 11.57 × 8.11 in / 31.89 × 12.01 × 21.61 in
Single Zone System - Up to 1,000 sq. ft.
Productvariantdrop
24,000 BTU KIWE-KOIE Series 17 SEER2 – High Wall-Mounted Heat Pump Mini Split Air Conditioner - R-32 / 208-230V
3rd Generation
Model Number: KIWE24H2-31X + KOIE24H2-31X
676 / 629 / 505 / 412 / 352 CFM
4×16AWG
23,000 BTU (5,120 - 24,500 BTU)
725 PSIG
17 SEER2 / 9.5 HSPF2 / 9.5 EER2
22,400 BTU ( 5,120 - 24,500 BTU )
50 / 48 / 46 / 40 / 37 dB(A)
1/4" x 1/2"
65 ft
25 A
49 ft
17 A
26.5 / 34.2 lbs
65 / 73.85 lbs
5°F – 86°F / 53.6°F – 122°F
56 dB(A)
208-230V/ 1 Ph / 60 Hz
25 ft
R-32
>=62°F / <=86°F
39.76 x 12.4 x 8.66 in / 33.98 × 13.74 × 23.7 in
Single Zone System - Up to 1,500 sq. ft.
Productvariantdrop
36,000 BTU KIWE-KOIE Series 17 SEER2 – High Wall-Mounted Heat Pump Mini Split Air Conditioner - R-32 / 208-230V
3rd Generation
Model Number: KIWE36H2-31X + KOIE36H2-31X
882 / 741 / 564 / 458 / 411 CFM
4×16AWG
35,000 BTU (7,500 - 36,000 BTU)
725 PSIG
17 SEER2 / 8.5 HSPF2 / 9.5 EER2
35,400 BTU (7,500 - 36,000 BTU)
55 / 52 / 46 / 41 / 39 dB(A)
1/4" x 5/8"
98 ft
35 A
65 ft
23 A
38.6 / 46.3 lbs
105.8 / 114.6 lbs
5°F – 86°F / 53.6°F – 122°F
63 dB(A)
208-230V/ 1 Ph / 60 Hz
25 ft
R-32
>=62°F / <=86°F
46.89 × 14.17 × 10.16 in / 38.5 × 16.57 × 31.61
Single Zone System - Up to 2,500 sq. ft.
