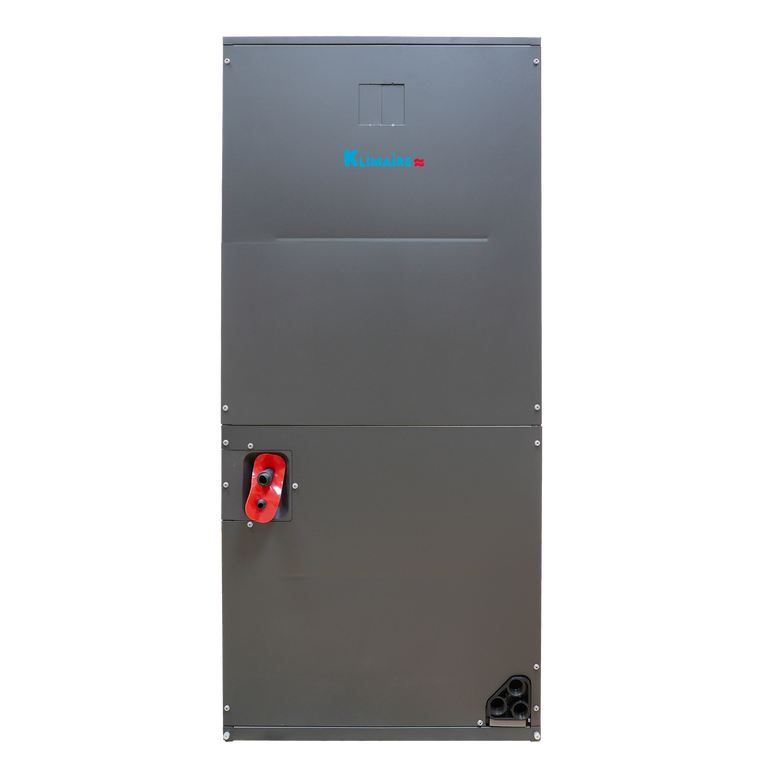

Klimaire KIDT Series – Central Ducted Multi-Position Air Handler (R454B) – 208–230V

Product Documentation

KIDT - Installation Manual
  • Cooling Capacity (Total / Min–Max)
  • Energy Efficiency
  • external static pressure up to
  • Heating Capacity (Total / Min–Max)
  • indoor fan air flow
  • line set length min max
  • line set size liquid gas
  • max cir breaker mocp
  • max over current protection
  • max pipe elevation
  • Minimum Circuit Ampacity (MCA)
  • min max volts
  • Indoor Net / Gross Weight
  • package dimension w x d x h
  • Power Supply
  • Refrigerant Type
  • Sound Levels
  • thermostat type
  • throttle type
  • Unit Dimensions (W × D × H)
  • valve size liquid suction
Productvariantdrop
2 Ton 24,000 BTU Klimaire KIDT Series – Central Ducted Multi-Position Air Handler (R454B) – 208–230V
4th Generation
Model Number: KIDT24H2-41X
24,000 BTU (7,000 - 25,000 BTU)
18 SEER2 / 9.0 HSPF2-4 / 10 EER2
0.8 in.WC
18,500 BTU (6,000 - 25,000 BTU)
850 CFM
25 - 100 ft
3/8 - 3/4 in
15 A
15 A
50 ft
5 A
187 / 253 V
122 / 154 lb
24.5 x 23 x 52 in
208/230V / 1Ph / 60Hz
R-454B
57 dB(A)
Klimaire RS485 Wired Controller / 24V AC Universal Thermostat
TXV
21 x 21 in x 46.5 in
3/8 - 3/4 in
Productvariantdrop
3 Ton 36,000 BTU Klimaire KIDT Series – Central Ducted Multi-Position Air Handler (R454B) – 208–230V
4th Generation
Model Number: KIDT36H2-41X
34,000 BTU (8,000 - 36,000 BTU)
19 SEER2 / 9.0 HSPF2-4 / 10 EER2
0.8 in.WC
36,000 BTU (7,000 - 38,000 BTU)
1150 CFM
25 - 100 ft
3/8 - 3/4 in
15 A
15 A
50 ft
5 A
187 / 253 V
122 / 154 lb
24.5 x 23 x 52 in
208/230V / 1Ph / 60Hz
R-454B
58 dB(A)
Klimaire RS485 Wired Controller / 24V AC Universal Thermostat
TXV
21 x 21 in x 46.5 in
3/8 - 3/4 in
Productvariantdrop
4 Ton 48,000 BTU Klimaire KIDT Series – Central Ducted Multi-Position Air Handler (R454B) – 208–230V
4th Generation
Model Number: KIDT48H2-41X
53,000 BTU (9,400 - 53,000 BTU)
17 SEER2 / 8.2 HSPF2-4 / 7.5 EER2
0.8 in.WC
53,000 BTU (15,000 - 56,000 BTU)
1700 CFM
25 - 100 ft
3/8 - 7/8 in
15 A
15 A
50 ft
7 A
187 / 253 V
154 / 190 lb
28 x 24.5 x 62 in
208/230V / 1Ph / 60Hz
R-454B
62 dB(A)
Klimaire RS485 Wired Controller / 24V AC Universal Thermostat
TXV
28 x 24.5 x 62 in
3/8 - 3/4 in
Productvariantdrop
5 Ton 60,000 BTU Klimaire KIDT Series – Central Ducted Multi-Position Air Handler (R454B) – 208–230V
4th Generation
Model Number: KIDT60H2-41X
53,000 BTU (9,400 - 53,000 BTU)
17 SEER2 / 8.2 HSPF2-4 / 7.5 EER2
0.8 in.WC
53,000 BTU (15,000 - 56,000 BTU)
1700 CFM
25 - 100 ft
3/8 - 7/8 in
15 A
15 A
50 ft
7 A
187 / 253 V
154 / 190 lb
28 x 24.5 x 62 in
208/230V / 1Ph / 60Hz
R-454B
62 dB(A)
Klimaire RS485 Wired Controller / 24V AC Universal Thermostat
TXV
28 x 24.5 x 62 in
3/8 - 3/4 in
