Klimaire KDIP Series – Ducted Ceiling-Recessed Indoor Unit

Single-Zone & Multi-Zone Compatible

Low-Profile, Quiet Operation, Flexible Installation

KDIP Series – Key Features

  • Available Capacities
    • 9,000 BTU - 24,000 BTU
  • Single-Zone & Multi-Zone Compatible

    Works with single-unit outdoor or multi-outdoor setups for flexible applications.

  • Slim, Low-Profile Design

    Recessed into ceilings or tight spaces for a discreet, hidden installation

  • Flexible Air Return Intake

    Rear or bottom return options for easier installation

  • Smart Control Ready

    Built-in Wi-Fi® plus wired and wireless remote options

  • Ultra-Quiet Operation

    As low as 27 dB(A) for whisper-quiet comfort

  • Condensate Drain Pump

    Built-in for 24k units; optional external pump for 9k–18k units

The Klimaire KDIP ducted ceiling recessed indoor unit is designed to deliver quiet, efficient comfort in a compact, low-profile form factor that remains completely concealed from view. Engineered for recessed ceiling or attic installations, the KDIP provides discreet, evenly distributed airflow while preserving interior aesthetics. Its slim cabinet design supports tight ceiling spaces and flexible installation layouts, delivering consistent temperature control for residential and light commercial applications without sacrificing performance.

Ideal For: Ceiling-recessed ducted installations in homes, apartments, offices, and light commercial spaces where concealed airflow, minimal visual impact, and efficient space utilization are required. Ideal for renovations, new construction, and applications where wall-mounted units are not preferred and clean, unobtrusive comfort is a priority.

Wi-Fi Connectivity

Available using the optional Klimaire KJR-120N (X6W)/BGEF wired controller with built-in Wi-Fi, allowing system control through the NetHome Plus App and compatibility with Amazon Alexa and Google Home.


Features

Energy Saving


Comfort


Performance


Convenience


Reliability


ECO Mode

Reduces energy consumption by optimizing compressor and fan operation while maintaining comfort.

GEAR Mode

Limits maximum power output (50%, 75%, or 100%) to help manage energy use and electrical demand.

46°F Home Away Mode

Maintains indoor temperature at 46°F to prevent freezing while minimizing energy use when unoccupied.

Adjustable Fan Speed

Provides multiple fan speed settings to fine-tune airflow and comfort levels.

Anti-Cold Air Function

Prevents cold air from blowing during heating startup by delaying fan operation until the unit reaches the proper temperature.

Wide-Angle Airflow

Delivers air over a broader angle to cover larger areas more evenly.

Horizontal Swing

Automatically moves the louvers left and right to evenly distribute air across the space.

Vertical Swing

Automatically moves air up and down to direct airflow where it’s needed.

Turbo Mode

Temporarily boosts system output to rapidly cool or heat the space.

Auto Swing

Continuously adjusts airflow direction to distribute air more evenly in the room.

Dry (Dehumidification) Mode

Reduces indoor humidity by removing excess moisture from the air while maintaining comfort.

Heating Mode

Delivers reliable heat to maintain comfortable indoor temperatures in cold conditions.

Auto Mode

Automatically selects cooling or heating and adjusts operation to maintain the set temperature.

Cooling Mode

Provides efficient cooling to quickly and evenly reduce indoor temperature.

Fan Mode

Circulates indoor air without heating or cooling for ventilation and air movement.

Self Clean

Automatically dries and cleans internal components to reduce moisture buildup and maintain performance.

Flexible Return Air Intake

Allows multiple return air configurations to accommodate various installation layouts.

Wi-Fi Enabled (Built-In or Optional Controller)

Enables remote operation and monitoring of the system through a smart device when connected to a Wi-Fi network.

Wireless Remote Control

Enables full control of system functions and settings from a distance within the room.

Optional Klimaire Wired Control

Provides wall-mounted control for stable operation and advanced system management, suitable for fixed or commercial installations.

Silent Mode

Reduces operating noise by limiting fan speed and system output for quieter operation.

Sleep Mode

Automatically increases cooling or decreases heating by 1°C per hour for 2 hours, then holds steady for 5 hours before switching off, ensuring comfort and energy savings while you sleep.

Breeze Away Mode

Directs airflow away from occupants to minimize direct air contact and improve comfort.

Follow Me Function

Uses the temperature sensor in the remote control to adjust operation based on the temperature around the user.

Timer

Allows the unit to automatically start and stop within a 24-hour period based on user-defined schedules.

Built-In Drain Pump

Facilitates condensate removal in installations where gravity drainage is limited.

2-Way Drainage Connection

Allows condensate drainage from either side of the indoor unit for flexible installation.

Internal E-Box

Houses electrical components in a protected enclosure to improve safety, reliability, and service accessibility.

Alarm Indicator

Provides visual alerts when the system detects abnormal operation or fault conditions.

Anti-Corrosive Golden Fin Coating

Protects the heat exchanger from corrosion caused by moisture, salt, and environmental exposure to extend system lifespan.

A2L Disperse System

Enhances safety by managing refrigerant dispersion in systems using A2L refrigerants, supporting compliance with safety standards.

TU1 Copper Tubing

Uses high-quality copper tubing designed for stable performance and long-term durability under standard operating conditions.

Included Accessories

Wireless Remote Control & Wall Thermostat (Infrared)

Easily control your comfort with the included RG10F8(2)/BGEFU1 handheld wireless remote (with wall bracket) and KJR-120L (R2)/EFU1 infrared wall thermostat, providing simple temperature control and convenient local operation.

Brass Flare Nuts

Included brass flare nuts for refrigerant line connections. Used during installation to ensure proper line set fitment and a secure, leak-resistant connection

  • Air Flow Volume (Turbo/Hi/Mi/Lo/Si)
  • Cooling Capacity
  • design pressure
  • External Static Pressure (ESP) Range
  • Heating Capacity
  • Liquid / Gas Size
  • Minimum Circuit Ampacity (MCA)
  • Indoor Net / Gross Weight
  • package dimension w x d x h
  • Power Supply
  • Refrigerant Type
  • room temperature cooling heating
  • Sound Levels (Turbo/Hi/Mi/Lo/Si)
  • Unit Dimensions (W × D × H)
  • Zone Capacity
Productvariantdrop

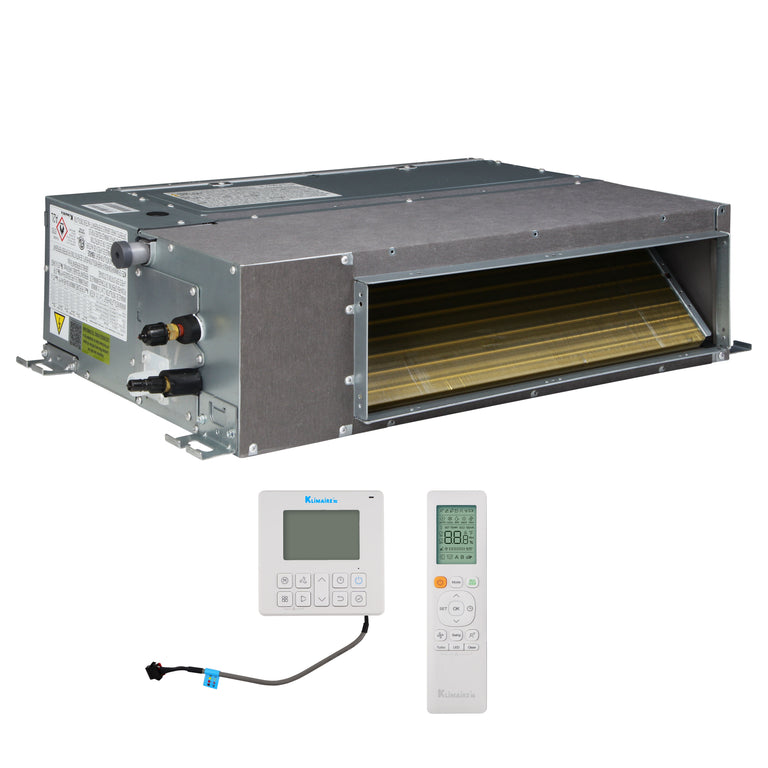

9,000 BTU Klimaire KDIP Series – Ducted Ceiling-Recessed Indoor Unit - 208-230V
4th Generation
Model Number: KDIP09-H2-4
323.7 / 264.9 / 206.0 / 147.2 / 117.7 cfm
9,000 BTU
550 / 340 PSIG
0-0.40 In. wc
10,000 BTU
1/4" x 3/8"
3 A
39.5 / 46.7 lbs
33.9 x 21.3 x 11.2 in
208/230V / 1Ph / 60Hz
R-454B
60℉ - 90℉ / 32℉ - 86℉
N/A / 32. 5 / 31 / 29.5 / 23.0 dB(A)
27.6 x 19.9 x 7.9 in
Single-Zone and Multi-Zone Compatible
Productvariantdrop
12,000 BTU Klimaire KDIP Series – Ducted Ceiling-Recessed Indoor Unit - 208-230V
4th Generation
Model Number: KDIP12-H2-4
400.2 / 323.7 / 264.9 / 176.6 / 117.1 cfm
11,500 BTU BTU
550 / 340 PSIG
0-0.40 In. wc
12,500 BTU
1/4" x 3/8"
3 A
39.5 / 46.7 lbs
33.9 x 21.3 x 11.2 in
208/230V / 1Ph / 60Hz
R-454B
60℉ - 90℉ / 32℉ - 86℉
N/A / 36 / 34.5 / 32.5 / 25.5 dB(A)
27.6 x 19.9 x 7.9 in
Single-Zone and Multi-Zone Compatible
Productvariantdrop
18,000 BTU Klimaire KDIP Series – Ducted Ceiling-Recessed Indoor Unit - 208-230V
4th Generation
Model Number: KDIP18-H2-4
600.4 / 559.2 / 500.3 / 441.4 / N/A cfm
17,000 BTU
550 / 340 PSIG
0-0.40 In. wc
19,000 BTU
1/4" x 1/2"
3 A
54.5 / 66.1 lbs
42.1 x 28.5 x 11.0 in
208/230V / 1Ph / 60Hz
R-454B
60℉ - 90℉ / 32℉ - 86℉
N/A / 40 / 37 / 35 / 29.5 dB(A)
34.7 x 26.5 x 8.3 in
Single-Zone and Multi-Zone Compatible
Productvariantdrop
24,000 BTU Klimaire KDIP Series – Ducted Ceiling-Recessed Indoor Unit - 208-230V
4th Generation
Model Number: KDIP24-H2-4
853.5 / 706.3 / 618.0 / 500.3 / N/A cfm
24,000 BTU
550 / 340 PSIG
0-0.80 In. wc
26,000 BTU
3/8" x 5/8"
3 A
80.5 / 91.9 lbs
48.2 x 33.9 x 12.0
208/230V / 1Ph / 60Hz
R-454B
60℉ - 90℉ / 32℉ - 86℉
N/A / 40.0 / 37.0 / 35.0 / 29.5 dB(A)
39.4 x 29.5 x 9.7 in
Single-zone and multi-zone compatible
