Klimaire KDIC Series – Universal Multi-Position Air Handler Unit

KDIC Series - Key Features

The Klimaire KDIC universal multi-position air handler indoor unit is designed to deliver quiet, reliable whole-home comfort for ducted residential and light commercial applications. Built for flexibility, its compact cabinet supports upflow, downflow, and horizontal (left or right) configurations, making it ideal for both new construction and retrofit installations with existing ductwork. Engineered for consistent performance, the KDIC provides balanced airflow and dependable temperature control while integrating seamlessly into a wide range of system layouts.

Ideal For: Ducted installations in homes, apartments, and light commercial spaces requiring a versatile, multi-position air handler with flexible installation options, reliable airflow performance, and compatibility with traditional ducted HVAC systems.

Wi-Fi Connectivity

Available using the included Klimaire KJR-120N (X6W)/BGEF wired controller with built-in Wi-Fi, allowing system control through the NetHome Plus App and compatibility with Amazon Alexa and Google Home.


Features

Energy Saving


Convenience


Reliability


Comfort


Performance


ECO Mode

Reduces energy consumption by optimizing compressor and fan operation while maintaining comfort.

GEAR Mode

Limits maximum power output (50%, 75%, or 100%) to help manage energy use and electrical demand.

Demand Response

Automatically reduces or shifts power usage during peak demand periods to support grid stability and lower energy costs.

Self-Diagnosis

Monitors system operation and displays error codes to assist with troubleshooting and service.

A2L Disperse System

Enhances safety by managing refrigerant dispersion in systems using A2L refrigerants, supporting compliance with safety standards.

Auto Defrosting

Automatically removes frost buildup from the outdoor unit during heating operation to maintain efficiency and performance.

Anti-Cold Air Function

Prevents cold air from blowing during heating startup by delaying fan operation until the unit reaches the proper temperature.

Timer

Allows the unit to automatically start and stop within a 24-hour period based on user-defined schedules.

Enlarged Operation Space & Added Diagnostic Board for ODUs

Provides extra service room inside the indoor unit and includes a built-in diagnostic interface to display outdoor unit error codes and operating status, simplifying maintenance and troubleshooting.

Auto Mode

Automatically selects cooling or heating and adjusts operation to maintain the set temperature.

Cooling Mode

Provides efficient cooling to quickly and evenly reduce indoor temperature.

Heating Mode

Delivers reliable heat to maintain comfortable indoor temperatures in cold conditions.

Dry (Dehumidification) Mode

Reduces indoor humidity by removing excess moisture from the air while maintaining comfort.

Fan Mode

Circulates indoor air without heating or cooling for ventilation and air movement.

Adjustable Fan Speed

Provides multiple fan speed settings to fine-tune airflow and comfort levels.

Turbo Mode

Temporarily boosts system output to rapidly cool or heat the space.

Sleep Mode

Automatically increases cooling or decreases heating by 1°C per hour for 2 hours, then holds steady for 5 hours before switching off, ensuring comfort and energy savings while you sleep.

Follow Me Function

Uses the temperature sensor in the remote control to adjust operation based on the temperature around the user.

Breeze Away Mode

Directs airflow away from occupants to minimize direct air contact and improve comfort.

Auto Restart

Automatically restores the unit to its previous operating mode and settings after a power interruption.

°C / °F Temperature Display Change

Allows switching between Celsius and Fahrenheit temperature display formats.

LED Display

Displays operating status and temperature information clearly on the indoor unit for easy monitoring.

Child Lock

Prevents unintended operation or setting changes by disabling control inputs.

Filter Reminder

Notifies the user when filter cleaning is required to help maintain system performance.

Optional Klimaire Wired Control

Provides wall-mounted control for stable operation and advanced system management, suitable for fixed or commercial installations.

Wi-Fi Enabled (Built-In or Optional Controller)

Enables remote operation and monitoring of the system through a smart device when connected to a Wi-Fi network.

Included Accessories

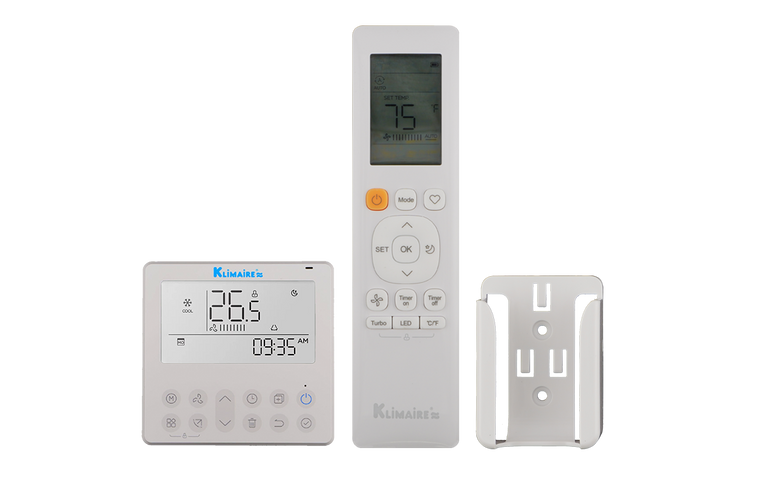

Wireless Remote Control & Wall Thermostat with Built-In Wi-Fi

Easily control your comfort with the included RG10F8(2)/BGEFU1 handheld wireless remote (with wall bracket) and KJR-120N(X6W)/BGEF 12V wall-mounted thermostat with built-in Wi-Fi & weekly timer, allowing easy temperature control, scheduling, and convenient remote access.


  • Air Flow Volume (Turbo/Hi/Mi/Lo/Si)
  • Cooling Capacity
  • design pressure
  • Heating Capacity
  • Liquid / Gas Size
  • Minimum Circuit Ampacity (MCA)
  • Indoor Net / Gross Weight
  • package dimension w x d x h
  • Power Supply
  • Refrigerant Type
  • room temperature cooling heating
  • Sound Levels
  • Unit Dimensions (W × D × H)
  • Zone Capacity
Productvariantdrop

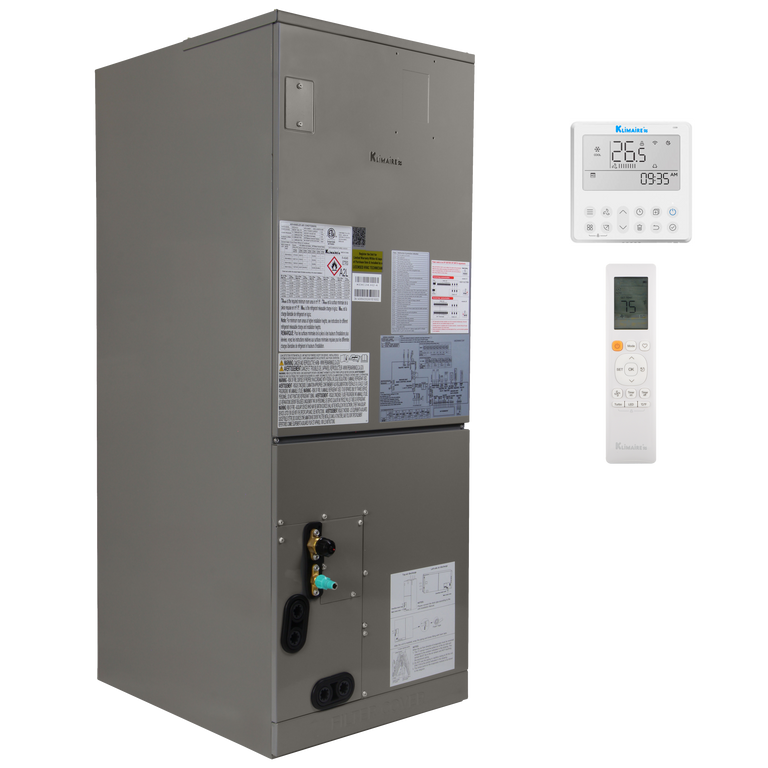

18,000 BTU Klimaire KDIC Series – Universal Multi-Position Air Handler Unit - 208-230V
4th Generation
Model Number: KDIC18-H2-4
618.0 / 576.8 / 529.7 / 488.5 / N/A cfm
18,000 BTU
550 / 340 PSIG
19,500 BTU
1/4" x 1/2"
3.5 A
104 / 126 lbs
20.9 x 26.6 x 48.6
208/230V / 1Ph / 60Hz
R-454B
60℉ - 90℉ / 32℉ - 86℉
N/A / 42.5 / 37.5 / 39 / N/A dB(A)
21.00 × 17.50 × 45.00 in
Multi-Zone Compatible
Productvariantdrop
24,000 BTU Klimaire KDIC Series – Universal Multi-Position Air Handler Unit - 208-230V
4th Generation
Model Number: KDIC24-H2-4
824.0 / 759.3 / 694.5 / 629.8 / N/A cfm
23,000 BTU
550 / 340 PSIG
26,000 BTU
3/8" x 5/8"
4 A
104 / 126 lbs
20.9 x 26.6 x 48.6
208/230V / 1Ph / 60Hz
R-454B
60℉ - 90℉ / 32℉ - 86℉
N/A / 43.5 / 40 / 25.5 / N/A dB(A)
21.00 × 17.50 × 45.00 in
Multi-Zone Compatible
